Description

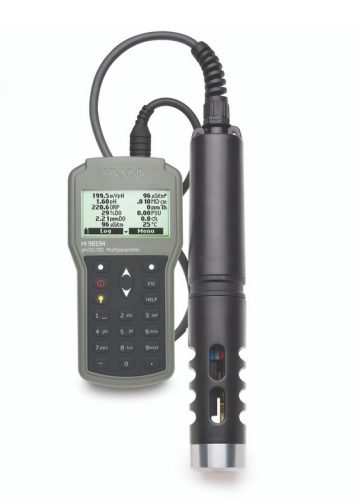

Hanna Instruments® Multiparameter Meter, pH/EC/TDS/Salinity/DO/Pressure/Temperture, Handheld, with Electrode and 4 m Cable, Waterproof, HI98194
Features:
- Backlit graphic LCD with on-screen help and capability to display up to twelve parameters simultaneously
- Graphic display allows for use of virtual keys for intuitive user interface
- Enclosed in IP67 rated waterproof casing and can withstand immersion in water at depth of 1 m for up to 30 minutes — probe has IP68 rating for continuous immersion in water
- Probe features Quick Connect DIN connector that makes waterproof connection with meter
- Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor port identification
- Probe and meter automatically recognize sensors that are connected
- Any ports not used on probe will not have parameter displayed or be configurable
- Integrated temperature sensor allows for automatic temperature compensation of pH, conductivity, and dissolved oxygen measurements
- Meter features built-in barometer with user-selectable units for dissolved oxygen pressure compensation
- Quick Calibration provides speedy, single point calibration for pH, conductivity, and dissolved oxygen
- Standard pH calibration options are available for calibrating up to three points from selection of five standard buffers and one custom buffer
- Conductivity calibration is single point from six standard selections or one custom standard
- Dissolved oxygen calibration is up to two standard points or single custom point
- GLP feature allows users to view calibration data and expiration information at touch of key — calibration data includes date, time, buffers/standards used for calibration, and slope characteristics
- Allows storage of up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours
- Fitted rubber keypad has dedicated keys for power, backlight, up/down arrows, help and alphanumeric characters
- Two virtual soft keys enable navigation through configuration of each parameter, meter setup, and logging of data for intuitative interface regardless of experience level of user
- Contextual help is always available through dedicated 'HELP' key
- Clear tutorial messages and directions are available on-screen to quickly guide users through setup and calibration — help information displayed is relative to setting/option being viewed
- Logged data can be transferred to Windows compatible PC with included HI920015 micro USB cable and HI9298194 software
- Battery icon indicator on display shows remaining power
- Meter uses four 1.5V AA batteries that provide up to 360 hours of battery life
- Supplied in rugged carrying case designed to provide years of use with inside compartment thermoformed to securely hold and protect all of components
- See brochure for complete specifications
Specifications
| Range | mV: +/- 600.0 mV, ORP: +/-2000.0 mV |
|---|---|
| Range | pH: 0.00 to 14.00 pH or +/- 600.0 mV |
| Range | DO: 0.0 to 500.0 %; 0.00 to 50.00 ppm (mg/L) |
| Range | Temperature: -5 to 55 degrees C,/ 23 to 131 degrees F / 268.15 to 328.15 K |
| Power | 4 AA 1.5 V batteries |
| Accuracy | pH: +/- 0.02 pH, mV: +/-0.5 mV, ORP,+/-1.0 mV |
| Compliant/Standard | IP67 meter, IP68 probe |
| Connectivity | Input Quick Connect DIN connector |
| Connectivity | Output: Micro USB cable |
| Dimensions | 185 x 93 x 35.2 mm / 7.3 x 3.6 x 1.4 in. |
| Manufacturer | Hanna Instruments |
| Model No | HI98194 |
| Warranty | 2 year |
