Description

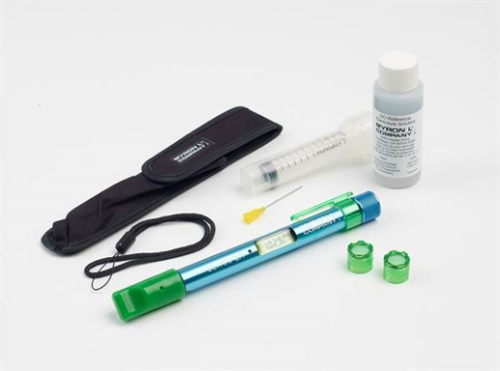

Myron L® Ultrapen™ PT5 Dissolved Oxygen & Temperature Pen, PT5Features:
Supplied with:
- Fast, accurate (± 2% of Reading) and easy-to-use
- 1 or 2 point calibration
- 3 calibration methods, air, water and 0 ppm O2
- Proprietary sensor design
- Automatic temperature adjustment for membrane permeability
- Rugged, reliable, water-proof, shock-resistant construction of aircraft grade aluminum fully protects inside electronics
- Simple, one-button operation
- Adjustable for altitude and salinity
- Includes high-capacity N-type battery
- User replaceable DO sensor
- DO membrane built-in to membrane cap for easy changing
- 1 year warranty excluding DO sensor (excludes DO sensor and battery)
| DO | Range | 0 to 20 ppm concentration0-200% saturation |
| Resolution | 0.01 ppm concentration0.1% saturation | |
| Accuracy | ± 2% of reading | |
| Repeatability | ± 1% of reading | |
| Temperature | Range | 0-71 °C or 32-160 °F |
| Resolution | 0.1 °C or 0.1 °F | |
| Accuracy | ± 0.1 °C or ± 0.1 °F | |
| Repeatability | ± 0.1 °C or ± 0.1 °F | |
| Adjustment for MembranePermeability | Automatic | |
| Operating | DO saturation 0-60 °C or 32-140 °FDO concentration 0-40 °C or 32-104 °F | |
| Storage | 0-55 °C or 32-131 °F | |
| Time to Reading Stabilization | 10 to 180 seconds | |
| Altitude Adjustment | -2,000 ft to 15,000 ft in 100 ft increments | |
| Salinity Adjustment | 0 to 50 ppt in 1 ppt increments | |
| Power Consumption | Active Mode | 33-140 mA |
| Sleep Mode | 2 µA | |
| Dimensions, Length x Diameter | 17.15 x 1.59 cm or 6.75 x 0.625 inches | |
| Weight | 57.4 g or 1.2 oz | |
| Case Material | Anodized aluminum with UV protective coating | |
| Battery | Type | N-type, alkaline |
| Voltage | 1.5 V | |
| Calibration Solutions | 1 or 2 points; 0 ppm DO Calibration solution and/or air or water | |
| Water Resistance | IP67 and NEMA 6 | |
| Certification | CE | |
| EN61236-1: 2006 — Annex A: 2008; 0995/5/EC Annex III:Electrostatic discharge to case of insturment may cause PT3 to spontaneously power ONIn this case, the PT1 will power OFF after several seconds | ||
- Battery
- Protective cap
- Pocket clip
- Holster
- Lanyard
- Operating instructions
