Description

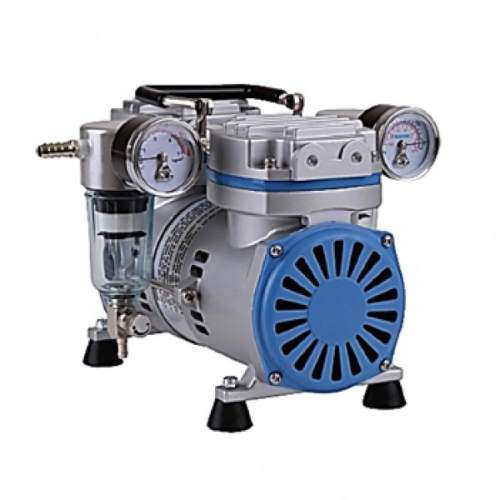

Vacuum/Pressure Pump
Features:
Vacuum / pressure in one machine
Works as both a vacuum pump & compressor. Equipped with gauges & regulators for easy monitoring & adusting both the vacuum level or delivery pressure.
No air pollution, maintenance free
Driven by a piston without the need of lubricant, regular oil changes or maintenance; with no oil pollution.
Overflow protection
Equipped with overflow protection which can prevent a large amount of liquid from being sucked into the pump.
Thermal protection device
Built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
Moisture trap with filter cartridge
Equipped with a filter cartridge at the air inlet and outlet to filter out particles & moisture to prolong the life of the pump.
Two-year warranty
International safety certifications :
CE certification
IP 30 protection
RoHS certification
Applications:
Vacuum filtration
Microbiological testing
Air sampling
Suspended solid testing
Pressure filtration
Specifications:
Voltage/Frequency: 110V / 60Hz
Maximum Current: 1.5 A
Maximum Vacuum: 630 mmHg
Maximum Pressure: 80 psi
Maximum Flow Rate: 34 lpm
Motor Rotation Speed: 1750rpm
Horse Power: 1/6 hp
Noise Level: 52 dB
Hose Barb: ID 5/16" (8 mm)
Vacuum / Pressure Regulator: Yes
Vacuum / Pressure Gauge: Yes
Overflow Protection / Filter Cartridge: Yes
Safety: Thermal Protection
Dimensions (L x W x H): 9.7 x 9.3 x 8" (24.7 x 23.5 x 20.4 cm)
Specifications
| Power | 147 W |
|---|---|
| Weight | 12 lbs (5.5 kg) |
