Description

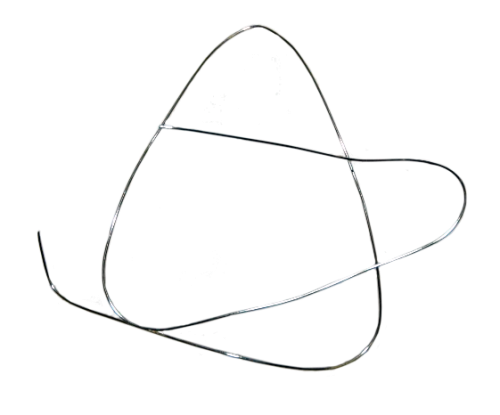

California Wire Company® Nickel Wire 24 GA for Ash Fusion Furnace Calibration Check, 1 ft./EA, 100139
Specifications:
Electrical
| Specific Resistance (Ω–CM/F) | 45.000 |
| Specific Resistivity (μ Ω–cm2/cm) | 7.48 |
| Commercial Resistance Tolerance (On Sizes below 0.020) | 3.00% |
| Temperature Coefficient of Resistance (ohms/ohm/degrees C {0 to 100 Degrees C}) | 0.0065 |
| Thermal EMF vs Copper | -0.014 |
Physical
| Density (gm/cm3) | 8.91 g/cm |
| Density(lbs/in3) | 0.32200 |
| Youngs Modulus (* 106 PSI) | 0 |
| Specific Heat at 20 Degrees C (cals/gm) | 0.110 |
| Thermal Conductivity (watts/cm/Degrees C) | 0.590000 |
| Coefficient of Linear Expansion (X 10-6 in/in Degrees C) Degrees C | 15.1 |
| Melting Point Degrees C | 1450.00 |
| Melting Point Degrees F | 2642.0 |
Composition
| Nickel (Ni) | 99.9700% |
Tensile Strength
| UTS Hard | 100000 |
| UTS Stress Relieved | 0 |
| UTS Annealed | 50000 |
| YTS Tensile - Hard | 0 |
| YTS Tensile - Stress Relieved | 0 |
| YTS Tensile - Annealed | 0 |
Miscellaneous
| Magnetic | None |
| Operating Temperature Degrees C | 932.00 |
| Operating Temperature Degrees F | 1710.00 |
Specifications
| Material | Nickel 270 |
|---|---|
| D.O.T. Number | Minimum Purity: 99.97% |
| Dimensions | 0.020 Diameter |
| Weight | 24 Gauge |
| Manufacturer | California Fine Wire Company |
| Model No | 100139 |
