Nitrogen Pressure Regulator for Model 6400 Calorimeter, Parr Instruments, A812DD

Parr Instruments® Nitrogen Pressure Regulator for Model 6400 Calorimeter, A812DD

Features:

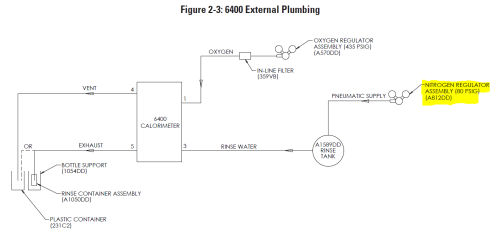

• Used to connect Nitrogen supply tank to A1589DD Rinse Tank
• When making nitrogen connection, back-up wrench should be placed on fitting to insure secure connection and to prevent over tightening flow restrictor
• Delivery pressure for nitrogen should be set at 0.5 MPa (80 psig or 5 bar)
• To install regulator, unscrew protecting cap from tank and inspect threads on tank outlet to be sure they are clean and in good condition
• Place ball end of regulator in tank outlet and draw up union nut tightly, keeping gauges tilted slightly back from an upright position
