Description

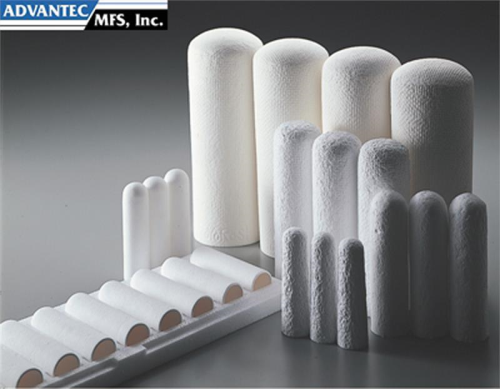

Advantec MFS™ No.84 Cellulose Extraction Thimble, I.D. 43mm; O.D. 47mm; Length 123mm, 25/PK N08443X47X123MM
Features:
- High purity, seamless filters with a characteristic thimble shape
- Used for analysis of fats, oils, grease, pesticides, pollutants, other organics and additives in plastics and rubber materials
Specific Applications for No. 84 Cellulose Thimbles:
- Suitable for Soxhlet extractions of organic components
- Dust sampling
- Lipid content <0.1% by weight
Specifications and Equivalents:
| Grade | No. 84 |
| Material | Cellulose |
| Inside Diameter (I.D.), mm | 43 |
| Outside Diameter (O.D.), mm | 47 |
| Height, mm | 123 |
| Nominal Rating, µm | 8 |
| Thickness, mm | 1.5 |
| Weight (g per 25 x 90 thimble) | 3.6 |
| Pressure drop (mm H20/5cm/sec) | 25 |
| Collection Efficiency (%, 0.3 µm DOP) | 89 |
| Maximum Operating Temperature (°C) | 120 |
| Heat loss rate (%) | N/A |
| Conversions | |
| Whatman | 2800 |
| Schleicher & Schuell | 603 |
Other Sizes Available for No. 84 Cellulose Thimbles:
| Catalog No. | Mfg. No. | I.D. x O.D. x Height, mm |
| 90-7466-85 | NO8425X29X90MM | 25 x 29 x 90 |
| ADV-NO8443X123MM | NO8443X47X123MM | 43 x 47x 123 |
