Description
Features:
- Intuitive, user-friendly icons—electrode status displays pH slope
- Grip-Clip™ electrode holder quickly and easily secures electrode to side of beaker or container (for use with separate pH and conductivity/ATC probes)
- Memory of 500 data sets and USB or RS-232 output for tranfer to PC
- Extended battery life or optional universal power adapter
- Built-in stand with wall mount allows for easy benchtop measurement or storage

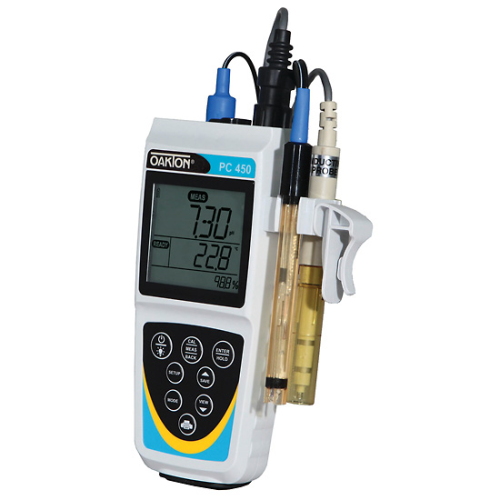

The PC 450 meter offers a rugged, waterproof housing, making it ideal for the manufacturing floor, field testing, as well as the laboratory. Large, backlit LCD lets you view the main measurement simultaneously with temperature. Calibrate pH with up to six points from USA, NIST, DIN, and custom pH buffer sets. Autocal feature for conductivity has one calibration point per range. ATC ensures measurement accuracy even in fluctuating temperatures.
Meter features include ready (stability) indicator, smart averaging, user-selectable °C/°F units, hold function, calibration alarm, battery life-indicator, and electrode status.
Perform data logging with manual or timed collection of up to 500 data sets with real-time clock time/date stamp. Order optional data cable for USB or RS-232 connectivity to tranfers data to a PC. Choose from the combination pH/conductivity/temperature probe or separate probe options.
What's included:
- PC 450 Meter
- pH probe 91-2619-61 (WD-35641-51)
- Conductivity/temperature cell, K= 1.0 92-2659-17 (WD-35806-50)
- Grip-Clip holder 92-2659-96 (WD-35614-50)
- Two AA batteries
Specifications:
| Meter Style | Portable |
| Range (pH) | -2.00 to 16.00 |
| Range (mV) | ± 2000 |
| Range (Conductivity) | 0 to 200 mS |
| Range (TDS) | 0 to 200 ppt |
| Range (Temperature °C) | -10 to 110 |
| Range (Temperature °F) | 14 to 230 |
| Resolution (pH) | 0.01 |
| Resolution (mV) | 0.1/1 |
| Resolution (Conductivity) | 0.01 µS to 0.1 mS |
| Resolution (Temperature) | 0.1 |
| Resolution (TDS) | 0.01 ppm to 0.1 ppt |
| Accuracy (pH) | ±0.01 pH |
| Accuracy (mV) | ±0.5 mV |
| Accuracy (Temperature) | ±0.5°C |
| Accuracy (Conductivity) | ±1% full-scale |
| Accuracy (TDS) | ±1% of reading |
| Accuracy (Salinity) | ±1% full-scale |
| Temperature Compensation | Automatic or Manual |
| Display | LCD |
| Connections | USB, RS232 |
| Power | 2 AA batteries |
| Datalogging (points) | 500 data sets |
| CE Compliance | Yes |
| Brand | Oakton |
| Dimensions ("W) | 3-1/8 |
| Dimensions ("H) | 2-1/4 |
| Dimensions ("L) | 7-7/8 |
| Model | PC450 |
| Product Type | Multiparameter Meter |
Additional Choices:
| Catalog No. | Mfg P/N | Description |
| 91-2619-04 | WD-35630-32 | PC 450 WP Meter Only |
| 91-2619-01 | WD-35630-10 | PC 450 WP Meter with Combination Probe |
| 92-2659-92 | WD-35630-12 | PC 450 WP Meter with Separate Probes |
| 91-2619-02 | WD-35630-80 | PC 450 WP Meter Kit with Combination Probe |
| 92-2659-100 | WD-35630-81 | PC 450 WP Meter Kit with Combination Probe & NIST Traceable Calibration |
| 91-2603-50 | WD-35630-90 | PC 450 WP Meter Kit with Separate Probes |
