Description

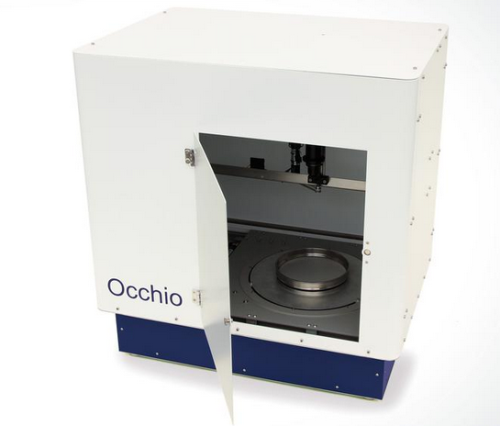

Occhio® SieveCal® Automatic Sieve Calibrator, 100-240 VAC, 50-60 Hz, 710
Features:
- Fully automatic laboratory test sieve calibration application using digital imaging technology
- Easy operation using Callisto® software
- ASTM E, ASTM E 161 ISO 3310 1 & 2 DIN
- 2 minute pass/fail SOP
- Comprehensive software package
- Complete report generation capabilities
- Remote diagnostics and technical support
- Aperatures 38 microns to 12 mm
- Up to 100% of surface may be analyzed
- Easy focusing
- Non Contact inspection measure
- Detection and counting of clogged opening (relative proportion)
Specifications:
| External Computer (Optional Minimum Requirements | Intel Core i7 5820K @ 3.3GHz, Ram: 32GB DDR4 2.133 mHz, Hard Disk: 1TB +SSD 256 GB, Display 1920 x 1080 Mouse/keyboard: USB, US keyboard, Operating System Windows® 7 Pro 64 bits (or 10 Pro 64 bits) |
| Optics and Imaging | Standard Camera type: USB 3, ultra high resolution — Zoom front lens included from 2.5 up to 14.9 micron/pixel (optional: from 0.7 up to 4.1 micron/pixel), Lens Type: Telecentric Zoom (from x 4.5 up to x 0.24), Light Source: Monochrome 450 nm blue light |
| Sieve opening | from 38 micron to 12.5 mm |
| Sieve Size Supported | 3, 6, and 12 in., sieve adaptor included |
| Sieve Opening Computing | X opening, Y Opening, X Wire Thickness, Y Wire Thickness |
| Dedicated acquisition and reporting software | Compliant with ASTM E11 standard |
| Fully automated flat scanning table | sieve rotation and translation |
| Standard analysis duration | approximately 2 minutes |
Specifications
| Range | Sieve Opening: 38 micron to 12.5 mm |
|---|---|
| Power | 100-220 VAC, 50-60 Hz (external power supply module included) |
| Compliant/Standard | ASTM E, ASTM E 161 ISO 3310 1 & 2 DIN |
| Operating Environment | Temperature 5 degrees C - 25 degrees C, Relative Humidity: 35% - 80% non-condensing |
| Dimensions | W x D x H: 83 x 60 x 87 cm |
| Weight | 57 kg |
| Manufacturer | Occhio |
| Model No | 710 |
