Description

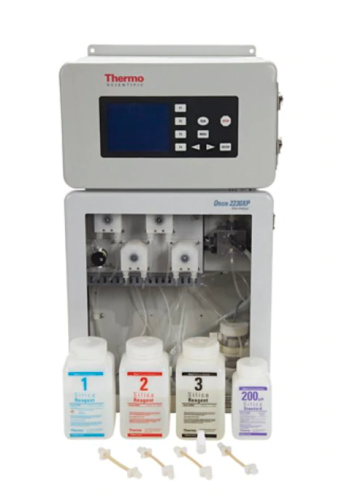

Thermo Scientific Orion 2230XP Silica Analyzer
Features:
- Continuous online monitoring of reactive silica to protect critical systems
- Designed to lower reagent consumption and reduce cost of ownership
- Simple user interface offers intuitive menu navigation
- Large display can be easy to read in different lighting conditions
- Compact size allows analyzer to be panel or wall mounted
- Using less reagent volumes reduces operating costs
Specifications:
| Current Loops | Two 0/4-20 mA - Direct or Reverse Acting (Isolated); Maximum 900 ohm load |
| Dimensions, (H x L x W) | 6 in. x 27 in. x 15 in. / 158 mm x 695 mm x 395 mm |
| Weight | 40 lb / 18 kg |
| Temperature, Operating | 32 °F to 113 °F / 0 °C to 45 °C |
| Accuracy | Less than 5% of reading or ±0.5 ppb, whichever is greater from 0 to 300 ppb; less than 10% of reading from 300 to 5000 ppb |
| Resolution | 0.5 ppb in all ranges |
| Repeatability | Less than ±2% of reading or ±0.5 ppb, whichever is greater from 0 to 300 ppb; less than ±5% of reading from 300 to 5000 ppb |
| Response Time | Less than 15 minutes per analysis |
| Enclosure Rating | NEMA 12 (Electronics cabinet), NEMA4X (Fluidics cabinet) |
| Flow Rating | 50 to 1000 mL/min |
| Communication Details | RS232 ASCII protocol for data reporting |
| Maximum Relative Humidity | 90% at 40 °C |
| Certifications | Safety CE: EN/IEC61010-1, cTUVus; EMC CE: EN61326; FCC Part 15 Class A |
| Relay Details | Four SPDT, 5 A at 240 V - Programmable |
| Detection Limits | 0.5 ppb |
| Inlet/Outlet | 1/4 in. outside diameter flexible tubing, polypropylene or similar material |
| Measurement Ranges | 0 to 5000 ppb auto-ranging or user programmable; minimum programmable span 0 to 100 ppb |
| Methods | Optical absorption at 810 nm |
| Sample Pressure | 5 psi maximum |
| Sample Streams | One |
| Sample Supply | Continuous |
| Suspended Solids | Less than 60 µm |
| Electrical Requirements | 100 to 240 VAC, 50 / 60 Hz |
Specifications
| Range | 0 to 5000ppb x 0.5ppb |
|---|---|
| Material | NEMA12 (Electronics cabinet), NEMA4X (Fluidics cabinet) |
| Power | 100-240Vac; 50/60Hz |
| Accuracy | Less than 5% of reading or ±0.5ppb, whichever is greater, from 0 to 300ppb. Less than 10% of reading from 300 to 5000ppb |
| Operating Environment | 32°F to 113°F / 0°C to 45°C |
| Connectivity | RS232 ASCII protocol for data reporting |
| Dimensions | 27 x 15 x 6 in. (695 x 395 x 158mm) |
| Weight | 40lb |
| Manufacturer | Thermo Scientific |
| Model No | 2230XP |
