Description

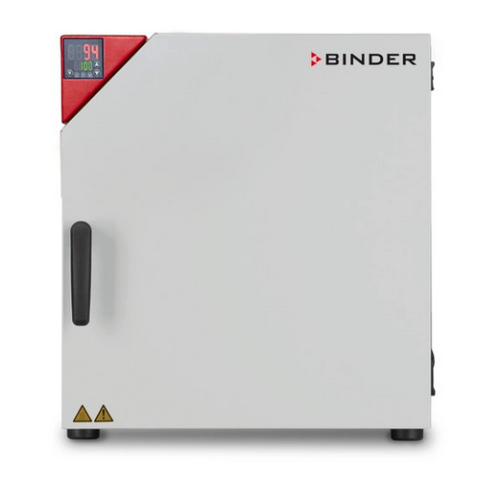

Binder® Drying and Heating Chambers with Forced Convection, Model FD-S 56, 120 V, 9090-0019
Features:
- Solid.Line™ ovens impress with their tried-and-tested BINDER® quality and reliability
- Suited to drying and heating
- Attributes geared towards application in question and therefore used in research and quality assurance
- Adjustable exhaust air flap
- Controller with timer function
- 1 chrome plated rack including shelf supports
- Forced-air (mechanical) convection
- APT.line™ preheating chamber technology
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
Specifications:
| Order number | 9090-0019 |
| Series | FD-S |
| Heating-up Time to 150 °C | 15 minutes |
| Temperature Fluctuation at 150 °C | ± 0.4 K |
| Temperature Variation at 150 °C | ± 2.6 K |
| Air Change (Approximate) at 100 °C | 4/hr |
| Unit Doors | 1 |
| Load per Rack | 15 kg |
| Wall Clearance Back | 160 mm |
| Wall Clearance Sidewise | 100 mm |
| Energy Consumption at 150 °C | 290 W-H/hr |
| Sound-Pressure Level | 43 dB(A) |
| Number of Shelves | 1 standard/3 maximum |
Specifications
| Range | Temperature: +10 degrees above ambient to 250 degrees C |
|---|---|
| Capacity | 55 L |
| Power | 120 V, 60 Hz, 1 Ph, 1.2 kW, 6.3 A fuse |
| Compliant/Standard | UL |
| Other | Internal D x H x W: 310 mm x 440 mm x 400 mm |
| Dimensions | External D x H x W (not including fixtures or connections): 577 mm x 625 mm x 614 mm |
| Weight | Empty: 34 kg; Permitted Loaded: 45 kg |
| Manufacturer | Binder |
| Model No | 9090-0019 |
