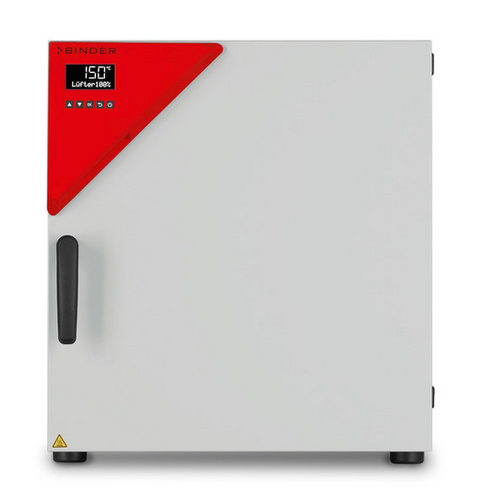

Binder® Drying and Heating Chambers with Gravity Convection, 57 L, 120 V, 9010-0334
Features:
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to +300 °C
- BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C
- With natural convection, all thermal processes which use this drying chamber are highly efficient
- ED series ensures fast, uniform drying
- High temperature accuracy thanks to APT.line™ technology
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
Specifications:
| Order number | 9010-0334 |
| Series | ED |
| Heating-up Time to 150 °C | 50 |
| Recovery time after 30 seconds door open at 150 °C | 19 minutes |
| Temperature Fluctuation at 150 °C | ± 0.4 K |
| Temperature Variation at 150 °C | ± 2.3 K |
| Air Change (Approximate) at 100 °C | 8/hr |
| Unit Doors | 1 |
| Load per Rack | 30 kg |
| Wall Clearance Back | 42 mm |
| Wall Clearance Sidewise | 70 mm |
| Energy Consumption at 150 °C | 180 W-H/hr |
| Number of Shelves | 2 standard / 4 maximum |
Specifications
| Range | Temperature: Ambient + 5 degrees to 300 degrees C |
|---|---|
| Capacity | 57 L |
| Power | 120 V, 60 Hz, 1 PH, 1.15 kW, 12.5 A fuse |
| Other | Interior, D x H x W: 380 mm x 420 mm x 360 mm |
| Dimensions | Exterior, D x H x W: 565 mm x 625 mm x 560 mm |
| Weight | Empty: 42 kg, allowable maximum load: 70 kg |
| Manufacturer | Binder |
| Model No | 9010-0334 |
