Description

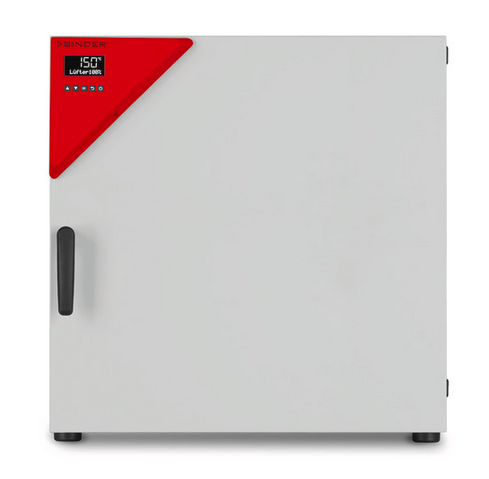

Binder® Oven, Gravity Convection, 114 L, Model ED115UL-120V, 9010-0336
Feature:
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- SB connection for recording data
- Temperature range up to +300 °C
- Use for routine drying and sterilization
- Ensures fast, uniform drying
- Natural, gravity convection
- Temperature range: ambient temperature plus 5 °C to 300 °C
- High temperature accuracy thanks to APT.line™ technology
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated rack
- Stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
- USB port for recording data
Specifications:
| Designation | ED115UL-120V |
| Part Number | 9010-0336 |
| Option Model | Standard |
| Temperature Fluctuations at 150 degrees C | 0.4 +/- K |
| Heating Up Time to 150 degrees C | 45 minutes |
| Recovery Time After Door Opened for 30 Seconds at 150 degrees C | 16 minutes |
| Air Change Rate at 100 degrees C | 6 times/hour |
| Rated Voltage | 120 V |
| Interior Volume | 114 L / 4 cu.ft. |
| Unit Doors | 1 |
| Number of Shelves (Standard/Maximum) | 2/5 |
| Energy Consumption at 100 degrees C | 140 Watt-hour/hour |
| Energy consumption at 150 degrees C | 245 Watt-hour/hour |
| Permitted Load | 331 lbs |
| Load per Shelf | 66 lbs |
| Wall Clearance Back | 6.3 in. |
| Wall Clearance Side | 3.94 in. |
Specifications
| Range | Temperature: +5 degrees C above ambient to 300 degrees C |
|---|---|
| Capacity | 114 L / 4 cu. ft. |
| Power | 120 V, 60 Hz, 1.35 kW, Single Phase, 12.5 Amp Fuse |
| Connectivity | USB for data logging |
| Other | Interior W x H x D: 510 x 530 x 425 mm |
| Dimensions | Exterior W x H x D: 710 x 705 x 605 mm |
| Weight | 126 lbs (empty) |
| Manufacturer | Binder |
| Model No | 9010-0336 (Model ED115UL-120V) |
