Oven, Lab, Forced Convection, 4.3 cu.ft. 240 Vac/60 Hz, Single Door, Model LBB-1-43
Roll over image to zoom in Click on image to zoom
Oven, Lab, Forced Convection, 4.3 cu.ft. 240 Vac/60 Hz, Single Door, Model LBB-1-43

Oven, Lab, Forced Convection, 4.3 cu.ft. 240 Vac/60 Hz, Single Door, Model LBB-1-43

Item: 91-2325-02-EA
Request a Quote

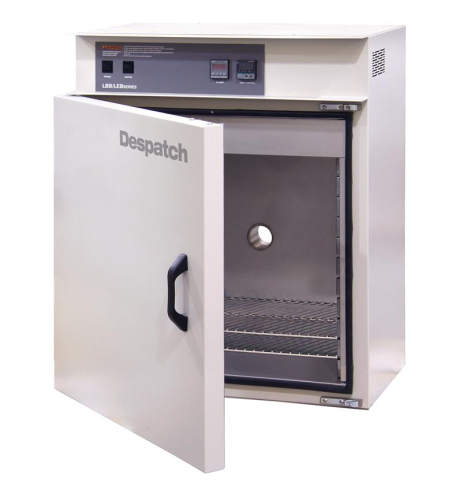

The Despatch LBB Forced convection benchtop oven features a combination of horizontal and vertical airflow that offers excellent temperature uniformity at a moderate price. It is recommended for a variety of laboratory and production applications including drying, curing, annealing and materials testing.

Fast heat-up rates - Powerful open coil heating elements and a forward curved fan deliver faster heat-up rates and short processing times.

Precise digital controls - Digital controls regulate temperatures within tight tolerances. A 3/4 (1.9cm) LED panel displays temperatures in large, bright, easy-to-read numbers. Temperatures can be reported in either Fahrenheit or Celsius.

Reliable, trouble-free performance - The LBB is designed and manufactured to provide years of dependable service. The fan and heater are top-mounted to prevent damage from spills. When spills do occur, the corrosion-resistant stainless steel interior and nickel plated shelves clean up easily. The motor is permanently lubricated and virtually maintenance free. And Despatch warrants the heater performance for a full five years the best warranty in the industry.

Every LBB benchtop oven is UL and C-UL listed, and receives a thorough performance test before shipping.

Forced convection for excellent temperature uniformity - A top-mounted fan draws air through the heater coils and propels it back to the chamber through plenums in the side walls, resulting in consistent, uniform temperatures.

Sturdy Shelves - Standard shelves handle up to 50 lbs.; reinforced shelves handle up to 200 lbs. All shelves are nickel plated for maximum durability and easy clean up. Built-in shelf supports make it easy to change shelf locations.


Standard Features
  • Temperatures up to 204°C (400°F)
  • Forced convection from top-mounted fan and plenums on sides of chamber
  • Digital control with 3/4 (1.9cm) LED display
  • 304 stainless steel interior
  • 5-year heater warranty
  • High-limit control
  • Nickel plated shelves - by model rated from 50 to 200lbs (23 to 91kg)
  • UL and C-UL listed




PHYSICAL SPECIFICATIONS

Chamber size (w x d x h) *clear opening width reduced
by 1ƒ‚½"" due to ƒ‚¾"" shelf supports on each side.
24 x 14 x 22 in.
61 x 36 x 56 cm
Capacity in cubic feet (liters)
4.3 (122)
Overall size (w x d x h) *depth includes exhaust port.
30 x 20.5 x 36.5 in.
76 x 52 x 93 cm
Electrical (50/60Hz. 1ph) Volts / Amps / Heater kW
240 / 7.5 / 1.6
Number of shelves provided
2
Maximum number of shelves
10 on 2in. centers
Cord and plug
15 amp
Number of doors
1
Approximate net weight
195 lbs. (88kg)
Approximate shipping weight
270 lbs. (121kg)
FUNCTIONAL SPECIFICATIONS

Time to temp with no load (40°C to 150°C)
17 minutes
Time to temp with no load (40°C to 204°C)
30 minutes
Recovery time after door open 1 min. (150°C)
2 minutes
Recovery time after door open 1 min. (204°C)
4 minutes
Temperature uniformity
(based on 9 point test in empty oven)
ƒ‚±3°C at 150°C
ƒ‚±4°C at 204°C
Operating range with 20°C ambient
35°C - 204°C
Control stability
ƒ‚±0.5°C
Maximum load capacity
200 lbs. (91kg)
Maximum shelf capacity (standard)
50 lbs. (23kg)
Maximum shelf capacity (reinforced)
n/a
Exhaust capacity
Adj. to 2cfm (0.94 lps)
