Description

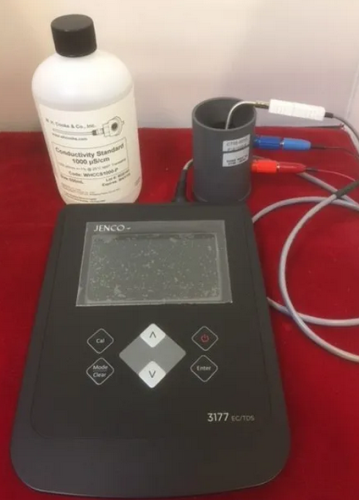

W.H. Cooke® Paint Conductivity Kit, Including Jenco 3177 Conductivity/TDS/Salintiy Meter, PPG-CT55-KIT-REV3
Features:
- Conductivity meter has temperature readout, backlit LCD display, selectable cell constant and a streamlined look
- Large, high contrast, backlit LCD displays EC/TDS and temperature simultaneously
- Simple one-point calibration
- Calibration data is stored in memory and is ready for use on power up
- Accepts 2-wire conductivity cells with K=0.01, K=0.1, K=1.0 and K= 10.0 cell constants for improved flexibility and accuracy
- AC adaptor or battery power with low battery indicator
- CT-55 Series Conductivity Cup is an excellent choice for customers that need a durable, high range conductivity sensor for difficult applications such as paint, viscous liquids, or other difficult samples and works in tandem with benchtop Conductivity/TDS/Salinity Meter
Included:
- JENCO® 3177 benchtop conductivity/CTS/temperature meter
- W. H. Cooke® CT-55 Series Conductivity Cup
- W. H. Cooke® Conductivity Solution
Specifications for Jenco 3177:
| Conductivity/TDS Range with K=0.1 Constant | 0.00 to 200.0 µS/cm / 0.00 to 200.0 mg/L |
| Conductivity/TDS Resolution with K=0.1 Constant | 0.01 µS/cm, 0.1 µS/cm / 0.01 mg/L, 0.1 mg/L |
| Conductivity/TDS Accuracy with K=0.1 Constant | ±0.5% F.S. |
| Conductivity/TDS Range with K=0.475 Constant | 0.0 µS/cm to 200.0 mS/cm / 0.0 mg/L to 200.0 g/L |
| Conductivity/TDS Resolution with K=0.475 Constant | 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm / 0.1 mg/L, 1 mg/L, 0.01 g/L, 0.1 g/L |
| Conductivity/TDS with K=0.475 Constant | ± 0.5% F.S. |
| Salinty Range | 0.0 to 80.0 ppt |
| Salinity Resolutin | 0.1 ppt |
| Salinity Accuracy | ± 0.5% F.S. |
| Temperature Range | 0.0 to 100.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.2 °C |
| Reference Temperaqture | 15.0 to 25.0 °C, default at 25.0 °C |
| Temperature Coefficient | 0.00 to 4.00%, default at 1.91% |
| TDS Factor | 0.30 to 1.00, default at 0.65 |
| Basic Cell Constant | K=0.1 or K=0.475, user selectable |
| Calibration Backup | Yes |
| Audio Feed | All touch keys |
| Data Memory | 750 sets |
| Auto Ranging | Yes |
| ATC Probe | Thermistor, 10k ohm |
Specifications
| Power | 100 to 240 VAC adapter or AAA x 6 Batteries |
|---|---|
| Compliant/Standard | RoHS, CE |
| Operating Environment | Ambient: 0 to 50 degrees C |
| Dimensions | Meter W x D x H: 150 x 210 x 45 mm |
| Weight | Meter: 504 grams (excluding batteries) |
| Manufacturer | W.H. Cooke Co Inc |
| Model No | PPG-CT55-KIT-REV3 |
