Description

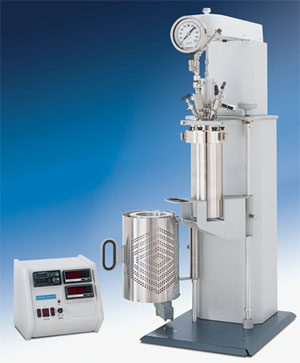

The 4520 Series are the largest reactors that can be operated on a bench top. They caome in two sizes and can be either fixed head or movable vessels and have a maximum operting pressure of 1900psi (130bar). Depending on the gasket for the main head, the reactor can reach an operating temperature of up to 350 degree C. Due to their large cylinder diameter, there is ample space for additional options, such as: internal cooling coil, catalyst addition devices, condensers, electrical feed-troughs and more. The standard stirrer drive on this series works well for mixtures with viscosity up to 25,000 centipoise. For heavier loads, reactors with larger magnetic drives and more powerful motors are available.
|
Model Number
|
4523
|
4524
|
4525
|
4526
|
|
Sizes, mL
|
1000
|
2000
|
1000
|
2000
|
|
Maximum Pressure
|
1900 psi (130bar)
|
|||
|
Maximum Temperature
|
||||
|
with FKM 0-ring
|
225C
|
|||
|
with FFKM 0-ring
|
275C
|
|||
|
with PTFE Flat Gasket
|
350C
|
|||
|
Vessel Style
|
Fixed Head
|
Moveable
|
||
|
Reactor Mounting
|
Bench Top or Floor Stand
|
|||
|
Closure (Cap Screws)
|
Split-Ring (6)
|
|||
|
Valve Connections
|
1/8" Male NPT
|
|||
|
Magnetic Stirrer, Model No.
|
A1120HC6
|
|||
|
Maximum Torque
|
16 Inch-Pounds
|
|||
|
Impeller(s), 6-blade
|
2
|
|||
|
Pressure Gage, Size
|
4.5 inches
|
|||
|
Range
|
0-2000 psi (140 bar)*
|
|||
|
Temperature Measurement
|
Thermowell
|
|||
|
Cooling Coil
|
Optional
|
|||
|
Style
|
Serpentine or Spiral
|
|||
|
Bottom Drain Valve
|
A465VB, 3/8" NPT
|
|||
|
Heater Style
|
Calrod
|
|||
|
Heater Power Watts
|
1000
|
1500
|
1000
|
1500
|
|
Stirrer Motor
|
1/8 hp variable speed*
|
|||
|
Electrical Supply
|
||||
|
Volts
|
115 or 230
|
|||
|
Maximum Load
|
14/7 amps*
|
|||
|
Vessel Dimensions
|
||||
|
Inside Diameter, inches
|
4.0
|
|||
|
Inside Depth,inches
|
5.4
|
10.5
|
5.4
|
10.5
|
|
Weight of Vessel, pounds
|
28
|
32
|
32
|
36
|
|
Reactor Dimensions
|
||||
|
Width, inches w/o Controller
|
16.5
|
16.5
|
||
|
Depth, inches
|
23.5
|
23.5
|
||
|
Height, inches
|
36
|
48
|
36
|
48
|
|
Weight, pounds
|
125
|
130
|
120
|
125
|
|
Spare Parts Kit
|
4509M
|
|||
Example
A 2000 mL, T316SS, reactor with fixed head, general purpose magnetic drive, PTFE gasket, 115V 50/60Hz explosion-proof 1/4 hp motor, 2000 psi gage and programable controller with pressure display module would be listed as:
|
No. 4524-T-GP-SS-115-XP.25-2000-4843-PDM
A B C D E F
Model Gasket Stirrer Material Voltage Motor
No.4524 -T -GP -SS -115 -XP.25 -etc.... A. Base Model
No. Size Vessel Style
4523-1000mL Fixed Head 4524-2000mL Fixed Head 4525-1000mL Moveable Vessel 4526-2000mL Moveable Vessel B. Gasket (Maximum Temp.)
-T PTFE Compression Gasket 350C
-O FKM O-Ring 225 C -O FFKM O-Ring 275 C C. Magnetic Stirrer Drive
-GP General Purpose 16 in-lb
-HD Heavy Duty 60 in-lb (4523-4524 only) -FMD1 Footless General Purpose 16 in-lb -FMD2 Footless Heavy Duty 60 in-lb D. Materials of Contruction
-SS T316 Stainless Steel
-MO Alloy 400 -IN Alloy 600 -HB2 Alloy B-2 -HC Alloy C-276 -CS Alloy 20Cb3 -TI2 Titanium Grade 2 -TI4 Titanium Grade 4 -NI Nickel 200 -ZI Zirconium 702 or 705 E. Electrical Supply
-115 115 Volt, 50/60Hz
-230 230 Volt, 50/60Hz F. Motor Option
-VS .12 Variable Speed, 1/8 hp
-VS .25* Variable Speed, 1/4 hp -VS .50* Variable Speed, 1/2 hp -XP .25* Explosion Proof Variable Speed, 1/4 hp -XP .50* Explosion Proof Variable Speed, 1/2 hp -AM .25 Air Motor, 1/4 hp -AM .50* Air Motor, 1/2 hp * Models 4523 and 4524 only G. Pressure Gage
-3000 3000 psi/200 bar
-2000 2000 psi/140 bar -1000 1000 psi/70 bar -600 600 psi/40 bar -200 200 psi/14 bar -100 100 psi/7 bar H. Internal Cooling Coil
-No Symbol No Coil
-CC Spiral Coil -SC Serpentine I. Bottom Drain Valve
-No Symbol No Bottom Drain Valve
-BDV Bottom Drain Valve J. Temperature Controller
-4848 Reactor Controller
-4857 Reactor Controller -4871 Process Controller K. Control Options
(List All Desired)
-TDM Tachometer Display Module -MCM Motor Control Module -PDM Pressure Display Module (psi or bar) -HTM High Temperature Cut-off Module -ETLM External Temperature Limit Module -MTM Motor Torque Module -A1925E2 Communication cable -SVM Solenoid Valve Module L. Custom Options
(List All Desired)
-AS Anchor Stirrer -CB Catalyst Basket -CAD Catalyst Addition Device -RC Reflux Condenser -RTC Reflux Take-Off Condenser -BF Baffles -GE Gas Entrainment Stirrer -SCP Solids Charging Port -ABH Aluminum Block Heater -WJ Welded Jacket M. Certifications
-No Symbol No Certification
-ASME ASME Certification -CE/PED European Community Certification/Pressure -P Parr Certification |
