PAR-4550 Series Reactors by Parr Instruments, 1 - 2 Gallon, 1900 psi

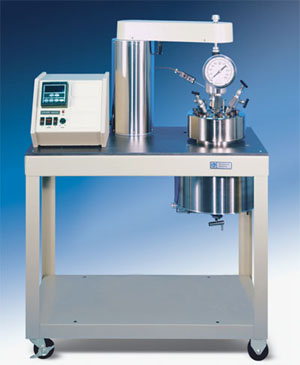

The 4550 Series Reactors are an extension in size of the 4530 series.  They can be either fixed head or movable vessels and have a maximum operating pressure of 1900psi (130bar).  Depending on the gasket for the main head, it can reach maximum operating temperatures up to 350 degree C.  Some movable head reactors allow opening and closing without removal of the cylinder from the heater and without auxiliary handling equipment.  The fixed head models allow the head and connections to remain in place while the cylinder and heater are lowered by pneumatic lift system.  This series also allows for addition of a variety of attachments.  All models require 230Vac power due to the higher wattage heaters.







Model Number	4551	4552	4553	4554
Sizes, Gallon (Liter)	1 (3.75)	2 (7.50)	1 (3.75)	2 (7.50)
Maximum Pressure	1900 psi (130 bar)
Maximum Temp°C
with FKM 0-ring	225°C
with FFKM 0-ring	275°C
with PTFE Flat Gasket	350°C
Vessel Style	Removable		Fixed Head
Reactor Mounting	Cart		Floor Stand
Closure (Cap Screws)	Split-Ring (6)
Valve Connections	1/4"NPT Male
Magnetic Stirrer, Model No.	A1180HC*
Maximum Torque	60 Inch-Pounds
Impeller(s), 6-Blade	2
Pressure Gage Size	4.5 inches
Range	0-2000 psi (140 bar)*
Temperature Measurement	Thermowell
Cooling Coil	Optional
Style	Serpentine or Spiral
Bottom Drain Valve	A465VB
Heater Style	Calrod
Heater Power Watts	2250	3750	2250	3750
Stirrer Motor	1/2 hp variable speed*
Electrical Supply
Volts	230
Maximum Load	16 amps	18 amps	16 amps	18 amps
Vessel Dimensions
Inside Diameter	6.0 inches
Inside Depth,inches	8.6	17.2	8.6	17.2
Weight of Vessel, pounds	95	120	115	140
Reactor Dimensions
Width, inches	35		20
Depth, inches	18		30
Height, inches	50		75
Weight, pounds	265	295	315	345
Spare Parts Kit	4559M







A composite identification number to be used when ordering a reactor can be developed by combining individual symbols from the separate sections.

Example

A 2 gallon, T316SS, removable head reactor with an O-ring seal, heavy duty magnetic drive stirrer, 230V Variable Speed 1/2 hp motor, 2000 psi gage, serpentine internal cooling coil, bottom drain valve, and programmable controller with pressure display module and a high temperature cutoff module would be listed as:



No. 4552-O-SS-HD-230-VS.50-2000-4843-PDM-HTM A B C D E F G H I J Model Gasket Material Stirrer Voltage Motor Gage Controller  Options   4552 O SS HD 230 VS.50 2000 4848 PDM HTM A. Base Model No. Size Vessel Style 4551 1 gallon Moveable 4552 2 gallon Moveable 4553 1 gallon Fixed Head 4554 2 gallon Fixed Head B. Gasket /Maximum temp. -T   PTFE Compression Gasket /350°C -O  O-Ring FKM-225°C -O  O-Ring FFKM-275°C C. Magnetic Stirrer Drive -HD    Heavy Duty, 60 in.-lb. -XHD  Extra Heavy Duty, 120 in.-lb. -FMD  1 Footless, Heavy Duty, 60 in.-lb -FMD  3 Footless, Extra Heavy Duty, 120 in.-lb D. Materials of Construction -SS    T316 Stainless Steel -MO  Alloy 400 -IN    Alloy 600 -HB   Alloy B-2 -HC   Alloy C-276 -CS   Alloy 20Cb3 -TI2   Titanium Grade 2 -TI4   Titanium Grade 4 -NI    Nickel 200 -ZI     Zirconium 702 or 705 E. Electrical Supply -230    230 Volt, 50/60Hz F. Motor Option -VS .25   Variable Speed, 1/4 hp -VS .50   Variable Speed, 1/2 hp -XP .25   Explosion Proof Variable Speed, 1/4 hp -XP .50   Explosion Proof Variable Speed, 1/2 hp -AM .50  Air Motor 1/2 hp G. Pressure Gage -2000  2000 psi/140 bar -3000  3000 psi/200 bar -1000  1000 psi/70 bar -600    600 psi/40 bar -200    200 psi/14 bar -100    100 psi/7 bar H. Temperature Controller-4848 Reactor Controller -4857 Reactor Controller -4871 Process Controller I. Control Options(List All Desired) -TDM Tachometer Display Module -MCM Motor Control Module -PDM Pressure Display Module (psi or bar) -HTM High Temperature Cut-off Module -ETLM External Temperature Limit Module -MTM Motor Torque Module -1925E2 Communication cable -SVM Solenoid Valve Module      J. Custom Options(List All Desired) -RC    Reflux Condenser -RTC  Reflux Take-Off Condenser -GE    Gas Entrainment Stirrer K. Certifications -No         Symbol No Certification -ASME    ASME Certification -CE         European Community Certification/Low Voltage -CE/PED  European Community Certification/Pressure -P            Parr Certification
