Description

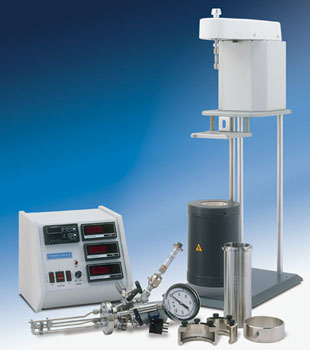

The 4560 Mini Bench Top Reactors are the most popular Parr stirred reactors. Though called "mini" reactors, they come in a wide range of sizes from 100 mL to 600 mL. They can be either fixed head or movable vessels and have a maximum opeating pressure of 3000 psi (200 bar). Depending on the gasket for the main head, it can reach operating temperatures up to 350 degrees C. Heaters for these reactors are made according to cylinder dimensions and are either clamp-on band heaters or mantle heaters. The support system of the mini reactors is specifically designed to provide stability at stirring speeds of up to 1700 rpm in a compact mounting suitable for small spaces and can also be adapted to accept smaller vessels from the 4590 micro reactor series.
|
Model Number
|
4561
|
4562
|
4563
|
4564
|
4565
|
4566
|
4567
|
4568
|
4566B
|
4566C
|
|
Sizes, mL
|
300
|
450
|
600
|
160
|
100
|
300
|
450
|
600
|
160
|
100
|
|
Maximum Pressure
|
3000 psi (200 bar)
|
|||||||||
|
Maximum Temperature
|
||||||||||
|
with FKM 0-ring
|
225 °C
|
|||||||||
|
with FFKM 0-ring
|
275 °C
|
|||||||||
|
with PTFE Flat Gasket
|
350 °C
|
|||||||||
|
Vessel Style
|
Removable
|
Fixed Head
|
||||||||
|
Reactor Mounting
|
Bench Top
|
|||||||||
|
Closure (Cap Screws)
|
Split-Ring (6)
|
|||||||||
|
Valve Connections
|
1/8" NPT Male
|
|||||||||
|
Magnetic Stirrer, Model No.
|
A1120HC6
|
|||||||||
|
Maximum Torque
|
16 Inch-Pounds
|
|||||||||
|
Impeller(s), 4-Blades
|
1
|
1
|
2
|
1
|
1
|
1
|
1
|
2
|
1
|
1
|
|
Pressure Gage Size
|
3.5 inches
|
|||||||||
|
Range
|
0-3,000 psi (200 bar)*
|
|||||||||
|
Temperature Measurement
|
Fixed Thermocouple
|
|||||||||
|
Cooling Coil
|
Included
|
Not Included
|
Included
|
Not Included
|
||||||
|
Style
|
Single Loop
|
|||||||||
|
Bottom Drain Valve, 1/4"
|
A485VB
|
|||||||||
|
Heater Style
|
Mantle
|
Clamp On
|
Mantle
|
Clamp On
|
||||||
|
Heater Power Watts
|
400
|
590
|
780
|
500
|
500
|
400
|
590
|
780
|
500
|
500
|
|
Stirrer Motor
|
1/8 hp variable speed*
|
|||||||||
|
Electrical Supply
|
||||||||||
|
Volts
|
115 or 230
|
|||||||||
|
Maximum Load, amps, 115/230
|
12/6*
|
|||||||||
|
Vessel Dimensions
|
||||||||||
|
Inside Diameter, inches
|
2.5
|
2.5
|
2.5
|
2.5
|
2
|
2.5
|
2.5
|
2.5
|
2.5
|
2
|
|
Inside Depth,inches
|
4
|
6
|
8
|
2
|
2
|
4
|
6
|
8
|
2
|
2
|
|
Weight of Vessel, pounds
|
10
|
13
|
16
|
8
|
9
|
12
|
15
|
18
|
8
|
9
|
|
Reactor Dimensions
|
||||||||||
|
Width, inches w/o Controller
|
11.5
|
|||||||||
|
Depth, inches
|
17.5
|
|||||||||
|
Height, inches
|
25.5
|
29.5
|
33.5
|
25.5
|
25.5
|
25.5
|
29.5
|
33.5
|
25.5
|
25.5
|
|
Weight, pounds w/Controller
|
60
|
63
|
66
|
60
|
60
|
62
|
65
|
68
|
60
|
60
|
|
Spare Parts Kit
|
4569M
|
|||||||||
Series 4560 Reactor Ordering Guide
A composite identification number to be used when ordering a mini reactor can be developed by combining individual symbols from the separate sections.
Example
A 600 mL, T316SS, reactor with an O-ring gasket, 115 V explosion proof motor, 3000 psi gage and programmable controller with pressure display module would be listed as:
|
No. 4563-O-SS-115-XP-3000-4843-PDM
A. Base Model
No. Size Vessel Style
4561- 300 mL Moveable 4562- 450 mL Moveable 4563- 600 mL Moveable 4564- 160 mL Moveable 4565- 100 mL Moveable 4566- 300 mL Fixed Head 4567- 450 mL Fixed Head 4568- 600 mL Fixed Head 4566B- 160mL Fixed Head 4566C- 100mL Fixed Head
B. Gasket /Maximum temp.
-T PTFE Compression Gasket 350°C
-O O-Ring FKM-225°C
-O O-Ring FFKM-275°C
C. Materials of Construction
-SS T316 Stainless Steel
-MO Alloy 400
-IN Alloy 600
-HB Alloy B-2
-HC Alloy C-276
-CS Alloy 20Cb3
-TI2 Titanium Grade 2
-TI4 Titanium Grade 4
-NI Nickel 200
-ZI Zirconium 702 or 705
D. Electrical Supply
-115 115 volt, 50/60Hz
-230 230 volt, 50/60Hz
E. Motor Option
-VS Variable Speed, 1/8 hp
-XP Explosion Proof, Variable Speed 1/4 hp -AM Air Motor
F. Pressure Gage
-3000 3000 psi/200 bar
-2000 2000 psi/140 bar
-1000 1000 psi/70 bar
-600 600 psi/40 bar
-200 200 psi/14 bar
-100 100 psi/7 bar
G. Temperature Controller
-
4848 Reactor Controller
- 4857 Reactor Controller
- 4871 Process Controller
H. Control Options
(List All Desired)
-TDM Tachometer Display Module
-MCM Motor Control Module
-PDM Pressure Display Module (psi or bar)
-HTM High Temperature Cut-off Module
-ETLM External Temperature Limit Module
-MTM Motor Torque Module
-A1925E2 Communication cable
-SVM Solenoid Valve Module
I. Custom Options
(List All Desired)
-AS Anchor Stirrer
-SB Static Catalyst Basket
-CAD Catalyst Addition Device
-RC Reflux Condenser
-RTC Reflux Take-Off Condenser
-GE Gas Entrainment Stirrer
-BF Baffles
J. Certifications
-No Symbol No Certification
-ASME ASME Certification
-CE European Community Certification/Low Voltage
-CE/PED European Community Certification/Pressure
-P Parr Certification
|
Specifications
| Range | 3000psi |
|---|---|
| Range | 350 degrees C |
| Capacity | 100-600ml |
| Power | 115V or 230V |
| Manufacturer | Parr Instrument |
| Model No | 4560 |
