Description

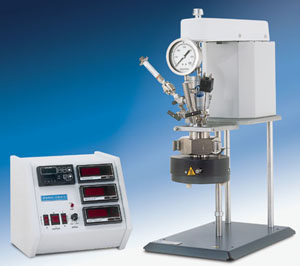

The 4590 Series Micro Reactors come in three sizes (25ml, 50ml and 100ml) with either movable or fixed head and a maximum operating pressure of 3000psi (200bar). Depending upon the gasket for the main head, the reactor can reach a maximum operating temperature of up to 350 degree C. The 25ml and 50ml micro reactors utilize a clamp-on band heater, while the 100ml micro reactor uses a mantle heater. Cooling capability is not available with this reactor due to limited space. The Parr micro reactors are an excellent choice for chemists working with expensive materials or materials available in small amounts. They are also ideal in minimizing the amount of waste product produced and also in restricting the amount of reactants/products in a given reaction. These micro reactors can be easily converted from one size to another by substituting the cylinder and internal fitting to the size of choice.
|
Model Number
|
4591
|
4592
|
4593
|
4596
|
4597
|
4598
|
|||
|
Sizes, mL
|
25
|
50
|
100
|
25
|
50
|
100
|
|||
|
Max. Pressure
|
3000 psi (200 bar)
|
||||||||
|
Max. Temperature
|
|||||||||
|
with FKM 0-ring
|
225°C Screw Cap or Split Rings
|
||||||||
|
with FFKM 0-ring
|
275°C Screw Cap or Split Rings
|
||||||||
|
with PTFE Flat Gasket
|
350°C Split Rings
|
||||||||
|
Vessel Style
|
Moveable
|
Fixed Head
|
|||||||
|
Reactor Mounting
|
Bench Top
|
||||||||
|
Closure (Cap Screws)
|
Split Rings (6)
|
||||||||
|
Valve Connections
|
1/8" NPT Male
|
||||||||
|
Magnetic Stirrer, Model No.
|
A1120HC6
|
||||||||
|
Maximum Torque
|
16 Inch-Pounds
|
||||||||
|
Impeller(s), 4-Blade
|
1
|
||||||||
|
Pressure Gage Size
|
3.5 inches
|
||||||||
|
Range
|
0-3000 psi (200 bar)*
|
||||||||
|
Temperature Measurement
|
Fixed Thermocouple
|
||||||||
|
Cooling Coil
|
Not Available
|
||||||||
|
Style
|
Not Available
|
||||||||
|
Bottom Drain Valve
|
Not Available
|
||||||||
|
Heater Style
|
Clamp-on
|
Mantle
|
Clamp-on
|
Mantle
|
|||||
|
Heater Power Watts
|
400
|
||||||||
|
Stirrer Motor
|
1/8 hp variable speed*
|
||||||||
|
Electrical Supply
|
|||||||||
|
Volts
|
115 or 230
|
||||||||
|
Maximum Load 115/230
|
12/6 amps
|
||||||||
|
Vessel Dimensions
|
|||||||||
|
Inside Diameter, inches
|
1.0
|
1.3
|
1.3
|
1.0
|
1.3
|
1.3
|
|||
|
Inside Depth,inches
|
2.0
|
2.3
|
4.6
|
2.0
|
2.3
|
4.6
|
|||
|
Weight of Vessel, pounds
|
7
|
7
|
8
|
7
|
7
|
8
|
|||
|
Reactor Dimensions
|
|||||||||
|
Width, inches w/o Controller
|
11.5
|
||||||||
|
Depth, inches
|
17.5
|
||||||||
|
Height, inches
|
25.5
|
||||||||
|
Weight, pounds
|
55
|
55
|
56
|
55
|
55
|
56
|
|||
|
Spare Parts Kit
|
4599M
|
||||||||
Series 4590 Reactor Ordering Guide
A composite identification number to be used when ordering a 4590 Series Reactor can be developed by combining individual symbols from the separate sections.
Example
A 50mL, T316SS, moveable head reactor with general purpose magnetic drive, O-ring seal, 115V 50/60 Hz, explosion proof motor, 3000 psi gage and programmable controller with pressure display module would be listed as:
|
No. 4592-O-GP-SS-115-XP.25-3000-4843-PDM
A. Base Model
No. Size Vessel Style
4591- 25mL Moveable 4592- 50mL Moveable 4593- 100mL Moveable 4596- 25mL Fixed Head 4597- 50mL Fixed Head 4598- 100mL Fixed Head B. Gasket /Maximum Temperature
-O O-Ring FKM 225°C
-O O-Ring FFKM 275°C -T PTFE Compression Gasket 350ºC C. Stirrer Drive
-GP General Purpose Magnetic
D. Materials of Construction
-SS T316 Stainless Steel
-MO Alloy 400 -IN Alloy 600 -HB Alloy B-2 -HC Alloy C-276 -CS Alloy 20Cb3 -TI2 Titanium Grade 2 -TI4 Titanium Grade 4 -NI Nickel 200 -ZI Zirconium 702 or 705 E. Electrical Supply
-115 115 Volt, 50/60Hz
-230 230 Volt, 50/60Hz F. Motor Option
-VS Variable Speed, 1/8 hp
-VS Variable Speed, 1/4 hp -XP.25 Explosion Proof, Variable Speed, 1/4hp -AM Air Motor, 1/4 hp G. Pressure Gage
-3000 3000 psi/200 bar
-2000 2000 psi/140 bar -1000 1000 psi/70 bar -600 600 psi/40 bar -200 200 psi/14 bar -100 100 psi/7 bar H. Temperature Controller
-4848 Reactor Controller
-4857 Reactor Controller -4871 Process Controller I. Control Options
(List All Desired)
-TDM Tachometer Display Module -MCM Motor Control Module -PDM Pressure Display Module (psi or bar) -HTM High Temperature Cut-off Module -ETLM External Temperature Limit Module -MTM Motor Torque Module -A1925E2 Communication cable -SVM Solenoid Valve Module J. Custom Options
(List All Desired)
-RC Reflux Condenser -RTC Reflux Take-Off Condenser -GE Gas Entrainment Stirrer -ABH Aluminum Block Heater -WJ Welded Jacket K. Certifications
-No Symbol No Certification
-ASME ASME Certification -CE European Community Certification/Low Voltage -CE/PED European Community Certification/Pressure -P Parr Certification |
