Description

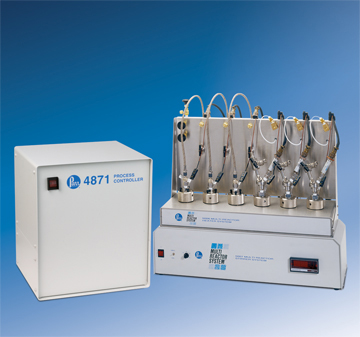

The 5000 Series Reactor system is designed to provide an integrated system for running multiple reactions simultaneously and applying the principles of high throughput experimentation to reactions conducted at high temperatures and pressures. The instrument includes six reactors with internal stirring, has a maximum operating pressure of 3000psi (200bar) and a maximum operating temperature of 300 degree C. The system allows for individual temperature control and continuous individual pressure monitoring. Additionally, it also has a manifold system that allows for two different input gases.
|
Model Number
|
5000
|
| Sizes, mL |
75
|
| Max. Pressure, psi (bar) |
3000 (200)
|
| Max. Temperature C | |
|
with FKM O-Ring
|
225
|
|
with FFKM O-Ring
|
275
|
|
with PTFE Flat Gasket
|
275
|
| Closure | |
|
with O-Ring
|
Screw Cap
|
|
with Flat Gasket
|
Screw Cap with 6 Cap Screws
|
| Material of Construction |
T316SS*
|
| Process Controller |
Model 4871
|
| Analog Inputs | |
|
6 Temperature
|
|
|
6 Pressure
|
|
|
1 Actual Stirring Speed
|
|
| Analog Outputs |
1 Stirrer Speed Setpoint
|
| Digital Outputs |
6 PID Temperature Control
|
| Temperature Measurement |
6 Type J Thermocouple
|
| Heater Style |
Aluminum Block
|
| Heater Power Watts |
250W per Station 1500W Total
|
| Stirrer Motor Type |
Variable Speed or Computer Controlled
|
| Stirrer Style |
Magnetic Stirrer Bar
|
| Electrical Supply | |
|
Volts
|
115 or 230
|
|
Maximum Load, amps
|
15/7.5
|
| Vessel Dimensions | |
|
Inside Diameter, inches
|
1.5
|
|
Inside Depth, inches
|
2.75
|
|
Weight of Vessel, pounds
|
3
|
| Reactor Dimensions, inches, pounds | ||||
|
Width
|
Depth
|
Height
|
Weight
|
|
|
Heater
|
25.75
|
9.25
|
2.875
|
31
|
|
Stirrer
|
28
|
9.5
|
7.625
|
12
|
|
Controller
|
13
|
11
|
15
|
14
|
|
Manifold, Remote
|
26.5
|
9.0
|
15
|
36
|
|
Manifold, Head Mount
|
26.5
|
9.0
|
15
|
18
|
| Spare Parts Kit |
4589B
|
|||
A composite identification number to be used when ordering a reactor can be developed by combining individual symbols from the separate sections.
Example
a 75ml, PTFE Gasket, T316SS reactor, 115V, Fixed Thermocouple, Head Mounted Valves, Check Valves, 2500 psi transducer range, magnetic bar stirring would be listed as:
|
No. 5000-T-SS-115-TC-H-AC-2500-MB
A. Base Model
No. Size Style
5000- 75mL 6 Stations
B. Gasket /Maximum temp.
-OV O-Ring FKM 225 C
-OK O-Ring FFKM 275 C -T PTFE Flat Gasket 275 C C. Materials of Construction
-SS T316 Stainless Steel
-HB Alloy B-2 -HC Alloy 276 D. Electrical Supply
-115 115 Volt, 50/60Hz
-230 230 Volt, 50/60Hz E. Temperature Measurement
-TW Thermocouple in thermowell
F. Valve Mounting
-H On head
-M On Manifold Panel G. Inlet Valve
-AC Check Valve
-MV Manual Needle Valve H. Transducer Range
-5000 5000 psi/347 bar
-2500 2500 psi/172 bar -1000 1000 psi/65 bar -200 200 psi/14 bar I. Stirrer Type
-MB Magnetic Bar Stirrer
J. Certifications
-No Symbol No Certification
-ASME ASME Certification -CE European Community Certification/Low Voltage -CE/PED European Community Certification/Pressure -P Parr Certification |
