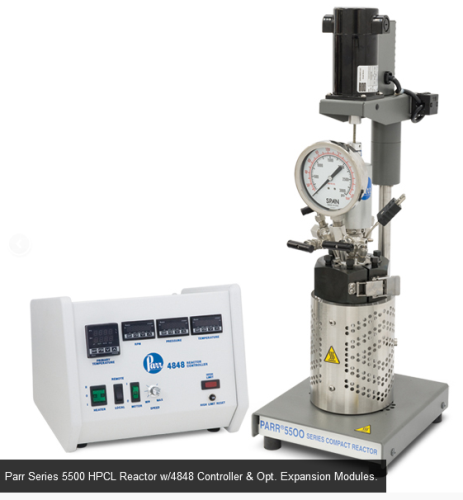

Description
The 5500 Series Reactors are based upon our popular micro and mini, Series 4590 & 4560 reactors. There are four principal differences between these new reactors and their original counterparts. These are:
1. A smaller, more compact magnetic drive is installed.
2. A smaller, more compact variable speed stirrer motor is directly coupled to the new magnetic drive.
3. The larger support stand, overarm and motor have been eliminated.
4. A streamlined, lower cost temperature controller has been designed for use with these compact systems.
As a result of these changes, we are now able to offer these new reactors to users who do not require the wide variety of options and expandability provided by our Series 4500 reactors at a significantly lower cost. These new designs will be welcomed by not only investigators with limited space or budgets, but also by investigators building multiple reactor installations for combinatorial chemistry or high throughput investigations. The reaction vessels used in these new HPCL reactors are identical to the ones furnished in the Series 4590 micro reactors and the Series 4560 mini reactors. HPCL reactors use the popular Parr split ring closure. These vessels are rated for a maximum working pressure of 3000 psi (200bar) and a maximum operating temperature, dependent upon the seal selected, of up to 350 degree C. The 25, 50, and 100 mL reactors are equipped with gas inlet and outlet valves, a liquid sampling valve, pressure gage, safety rupture disc and internal thermocouple in addition to the internal stirrer. The 300, 450 and 600 mL reactors provide an internal cooling loop in addition to these fittings.
|
Model Number
|
5511
|
5512
|
5513
|
5521
|
5522
|
5523
|
5524
|
5525
|
||
| Sizes, mL |
25
|
50
|
100
|
300
|
450
|
600
|
160
|
100
|
||
| Max. Pressure, psi (bar) |
3000 (200)
|
|||||||||
| Max. Temperature °C | ||||||||||
|
with FKM 0-ring
|
225
|
|||||||||
|
with FFKM 0-ring
|
275
|
|||||||||
|
with PTFE Flat Gasket
|
350
|
|||||||||
| Vessel Style |
Removable
|
|||||||||
| Reactor Mounting |
Bench Top
|
|||||||||
| Closure (Cap Screws) |
Split-Ring (6 for Flat Gasket) (0 for Quick Close)
|
|||||||||
| Valve Connections, NPT |
1/8" Male
|
|||||||||
| Magnetic Stirrer, Model No. |
A3040HC*
|
|||||||||
| Maximum Torque, Inch-Pounds |
2.5 (0.28 Nm)
|
|||||||||
| Impeller(s), 4-Blade |
1, 2 on 600 mL only
|
|||||||||
| Pressure Gage, Size, inches |
3.5
|
|||||||||
| Range, psi (bar) |
0-3,000 (200)*
|
|||||||||
| Temperature Measurement |
Fixed Thermocouple
|
|||||||||
| Cooling Coil |
NA
|
Included
|
Special
|
|||||||
| Style |
NA
|
Single Loop
|
Special
|
|||||||
| Bottom Drain Valve |
NA
|
|||||||||
| Heater Style |
Aluminum Block
|
|||||||||
| Heater Power Watts |
800
|
800
|
1000
|
800
|
1000
|
1000
|
800
|
800
|
||
| Stirrer Motor, hp, type |
1/17 V.S.
|
|||||||||
| Electrical Supply | ||||||||||
|
Volts
|
115 or 230
|
|||||||||
|
Maximum Load, amps, 115/230
|
8.0/4.5
|
8.0/4.5
|
9.7/5.4
|
8.0/4.5
|
9.7/5.4
|
9.7/5.4
|
8.0/4.5
|
8.0/4.5
|
||
| Vessel Dimensions | ||||||||||
|
Inside Diameter, inches
|
1
|
1.3
|
1.3
|
2.5
|
2.5
|
2.5
|
2.5
|
2
|
||
|
Inside Depth,inches
|
2
|
2.25
|
4.5
|
4
|
6
|
8
|
2
|
2
|
||
|
Weight of Vessel, pounds
|
12
|
12
|
12
|
13
|
15
|
17
|
12
|
12
|
||
| Reactor Dimensions | ||||||||||
|
Width, inches w/o Controller
|
8.8
|
|||||||||
|
Depth, inches
|
9.3
|
|||||||||
|
Height, inches
|
21.8
|
21.8
|
23.4
|
21.8
|
23.4
|
25.4
|
21.8
|
21.8
|
||
|
Weight, pounds w/Controller
|
25
|
25
|
25
|
26
|
28
|
30
|
25
|
25
|
||
| Spare Parts Kit |
5529SPK
|
|||||||||
A composite identification number to be used when ordering can be developed by combining individual symbols from the separate sections.
Example
A 300ml, O-ring gasket, T316SS reactor, 115V, 3000 psi gage, and programmable controller with tachometer display module would be listed as:
|
No. 5521-O-SS-115-3000-4836-TDM
A. Base Model
No. Size Motor/Drive
5511- 25 mL Variable Speed 5512- 50 mL Variable Speed 5513- 100 mL Variable Speed 5521- 300 mL Variable Speed 5522- 450 mL Variable Speed 5523- 600 mL Variable Speed 5524- 160 mL Variable Speed 5525- 100 mL Variable Speed
B. Gasket /Maximum temp.
-O O-Ring FKM 225°C
-T PTFE Flat Gasket 350°C C. Materials of Construction
-SS T316 Stainless Steel
-MO Alloy 400 -IN Alloy 600 -HB Alloy B-2 -HC Alloy 276 -CS Alloy 20Cb -TI2 Titanium Grade 2 -TI4 Titanium Grade 4 -NI Nickel 200 -ZI Zirconium 702 or 705 D. Electrical Supply
-115 115 Volt, 50/60Hz
-230 230 Volt, 50/60Hz E. Pressure Gage
-5000 5000 psi/347 bar
-4000 3000 psi/280 bar -3000 3000 psi/207 bar -2000 2000 psi/140 bar -1000 1000 psi/70 bar -600 600 psi/40 bar -200 200 psi/14 bar -100 100 psi/7 bar F. Controller
-4836 Programmable Control
-4843 Programmable Control -4844 Programmable Control with Cascade -4870 Process Controller G. Control Options
(List All Desired)
-TDM* Tachometer Display Module -PDM* Pressure Display Module -HTM* High Temperature Cut-off Module -*(A) Add to above for Analog Output
(0-5 or 0-10 VDC or 4-20mA)
-SVM Solenoid Valve Module
-CM Communications Module. (4843 & 4844 only)
H. Certifications
-No Symbol No Certification
-ASME ASME Certification -CE European Community Certification/Low Voltage -CE/PED European Community Certification/Pressure -P Parr Certification |
