Description

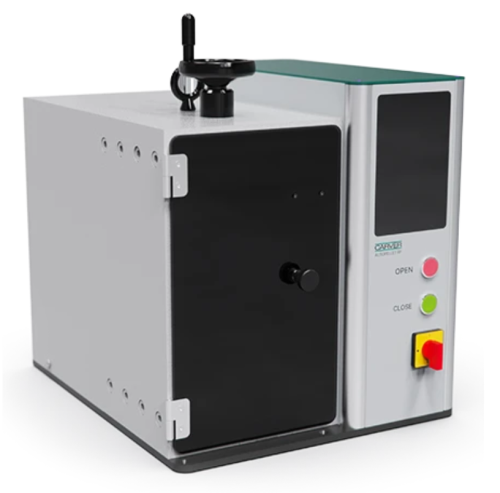

Carver Inc® Pellet Press, Autopellet RP Series, Laboratory Benchtop, 25 Tons, 3887NE.L
Features:
- Hydraulic press for preparation of pellets, briquettes and cakes of various powder materials
- Ideal sample preparation for XRF analysis and non-destructive elemental research
- Choice of 25 or 40 tons clamping force units (minimum 1,000 lbs)
- Daylight Opening 1.5 to 7.25 in.
- Stroke 1 in.
- Daylight adjustment wheel with swivel handle
- Self-contained hydraulic unit
- Illuminated 5 in. diameter work area
- Easy-to-use color touch screen HMI with programmable control of clamp force, dwell time, decompression rate, and ejection force
- Up to 20 custom program storage capability for automated cycles as well as manual mode for quick pellet pressing
- Force units selectable in pounds, kilograms, US tons, or metric tons
- Interlocked safety door
- Available in 115 V, 1 Ph or 230V, 1 Ph supply voltage
- Electrical disconnect (non-fused)
- Accommates dies up to 40 mm diameter
Specifications
| Range | Force: 1000 lbs to 25 tons (50000 lbs) |
|---|---|
| Power | Available as 115 V-1 Ph or 230 V-1Ph (Must specifiy) |
| Other | Platen size: 5 in. diameter |
| Other | Daylight opening: 1.5 to 7.25 / Ram stroke: 1 in. |
| Dimensions | W x D x H (range): 17.25 in. x 20.25 in. x (22 to 28 in). (+Handle) |
| Weight | 375 lbs |
| Manufacturer | Carver Inc |
| Model No | 3887NE.L |
