Description

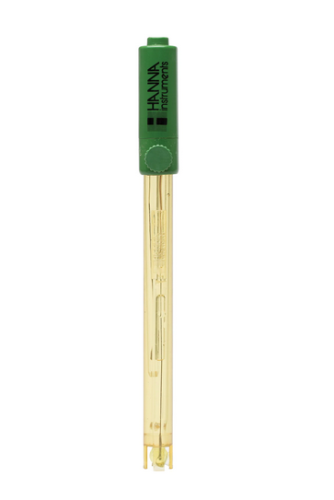

Hanna Instruments Refillable PEI Body pH Electrode with BNC Connector, Double Junction, and 1 m cable, HI1332B
Features:
- Polyetherimide (PEI) resin body for durability and chemical resistance; shielding protects the glass tip from breakage
- Spherical glass bulb is made of general purpose glass and has a resistance of 100 megaohms at 25 °C
- Double junction reference provides an internal compartment surrounding the Ag/AgCl reference wire and an outer compartment that is silver free to prevent silver contamination of the sample or the formation of silver precipitates that can clog the junction
Specifications:
| Reference | Double, Ag/AgCl |
| Junction/Flow Rate | ceramic, single frit/ 15-20 µL/h |
| Electrolyte | KCl 3.5M |
| Max Pressure | 0.1 bar |
| Range | 0 to 13 pH |
| Tip Shape | Spheric (dia: 7.5 mm) |
| Diameter | 12 mm |
| Body Length/Overall Length | 120 mm/175.5 mm |
| Temperature Sensor | No |
| Recommended Operating Temperature | 0 to 70 °C (32 to 158 °F) — general purpose |
| Amplifier | No |
| Matching Pin | No |
| Digital | No |
| Body Material | PEI (Polyetherimide) |
| Cable | Coaxial; 1 m (3.3') |
| Connection | BNC |
| Applications | Chemicals and other harsh applications, field applications, quality control |
| Warranty | 6 months |
