Description

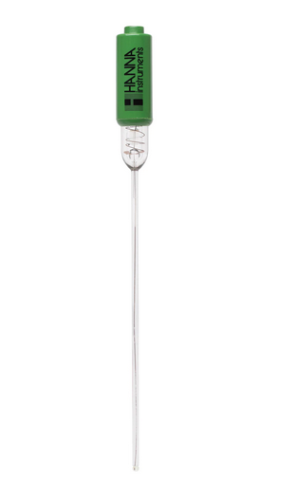

Hanna Instruments pH Electrode, Extended Length w/Micro Bulb and BNC Connector, 1m Cable, HI1093B
Features:
- General-purpose glass bodied, single reference junction electrode with micro bulb tip specifically designed for measuring pH in NMR tubes
- Open junction design provides a hard gel viscolene electrolyte layer between the sample and the internal reference cell that is free of silver chloride to reduce clogging and prevent sample contamination
- Resistant to harsh chemicals and easily cleaned
Specifications:
| Body Material | Glass |
| Reference | Single, Ag/AgCl |
| Junction/Flow Rate | Open |
| Electrolyte | Viscolene |
| Range | pH: 0 to 13 pH units |
| Maximum Pressure | 0.1 bar |
| Tip Shape | Spheric |
| Diameter | 3 mm |
| Body Length/Overall Probe Length | 130 mm/173 mm |
| Recommended Operating Temperature | 0 to 50 °C (32 to 122 °F) General Purpose |
| Temperature Sensor | No |
| Matching Pin | No |
| Amplifier | No |
| Digital | No |
| Cable Type and Length | Coaxial; 1 m (3.3') |
| Connector | BNC |
| Applications | NMR tubes |
| Warranty | 6 months |
