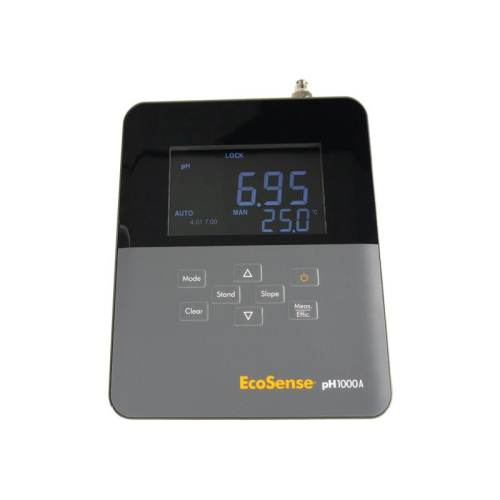

YSI™ EcoSense® pH1000A Benchtop pH/mV (ORP) Laboratory Meter with Power Supply, 601100Features:
- Provides accurate measurements in an affordable format
- Easy-to-use interface designed for routine pH or ORP measurements in the lab
- Measures pH, ORP (Oxidation Reduction Potential), mV, and temperature
- Large, high-contrast, LCD display
- Simple 1, 2, or 3 point calibration
- AUTOLOCK mode holds stable readings on the display—results in precise, repeatable, error-free readings
- Accepts U.S. (4.01, 7.00, 10.01) or NIST (4.00, 6.86, 9.18) buffer sets
- Automatic or manual temperature compensation for all pH measurements
- Calibration is stored in memory; view electrode efficiency at any time
- BNC input allows for any pH or ORP electrode with BNC to be connected*
- Battery or AC power (Power supply included)
*If not using the Model 1102 pH/ATC electrode which has built-in temperature sensor, then the Model 1103 temperature sensor will need to be used for automatic temperature compensation.
Includes:
- pH1000A meter
- AC power supply
- Instructions
Specifications:
| pH |
Range |
-2.0 to 16.0 pH units |
| Resolution |
0.01 pH units |
| Accuracy |
± 0.01 pH units |
| ORP/mV |
Range |
-1999.9 to 1999.9 mV |
| Resolution |
0.1 mV |
| Accuracy |
± 0.05% Full Scale; ± 1 mV |
| Temperature |
Range |
0.0 to 100 °C (32.0 to 212 °F) |
| Resolution |
0.1 °C |
| Accuracy |
± 0.1 °C |
|
System Accuracy (Instrument, Sensor,Cable)
|
± 0.2 °C + 1 LSD |
| Display |
Graphic LCD display, 93 mm W x 58 mm H(3.66 in. W x 2.28 in. H)
|
| pH Buffer Recognition |
U.S. (pH 4.01, 7.00, 10.01) orNIST (pH 4.00, 6.86, 9.18); user selectable
|
| pH Temperature Compensation |
Automatic/Manual 0.0 to 100 °C |
| Temperature Sensor |
Thermistor, 10 kΩ at 25 °C |
| Operating Temperature Range |
From 0 to 50 °C |
| Power |
6 x 1.5 V batteries or AC power supply (included with instrument)
|
| Weight |
590g (1.3 lbs.) with batteries installed;450 g (0.99 lbs.) without batteries installed
|
| Dimensions (W x D x H) |
155 x 195 x 52 mm (6.10 x 7.68 x 2.05 in.) |
| Certifications |
CE, cETLus; electrical protective class III |
| Warranty |
1 year on the pH1000A meter, 6 months on pH1000A cable/sensor assemblies
|
| Audio Feedback |
All touch keys |
| Auto Stable & Measurement Hold |
Yes |
| Connection |
BNC for pH and ORP (mV) electrodes; The temperature connector is unique to the pH1000A,therefore use YSI Model 1102 or 1103 for temperaturecompensated measurements. |
