Description

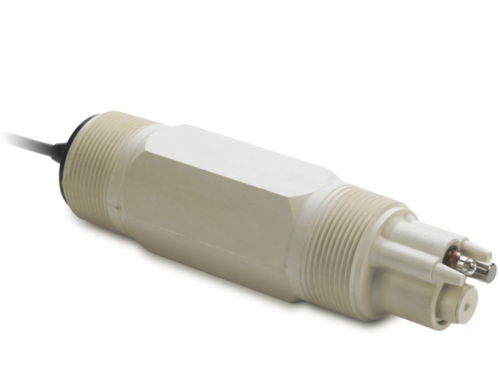

HACH® pH Sensor, Union Mount, LCP (Liquid Crystal Polymer), 5-wire with Internal Preamplifier, 10 ft (3 m) Cable, 6058PO
Features:
- Regenerateable Encapsulated LCP or PPS Differential pH and ORP Sensors-ideal for aggressive applications
- General purpose glass pH electrode
- PVDF junction
- Replaceable salt bridge creates barrier to contamination which minimizes dilution of internal standard cell solution — low maintenance and fewer calibrations
- Field-proven technique uses three electrodes instead of two normally used in conventional pH sensors — process and reference electrodes measure pH differentially with respect to third ground electrode for greater accuracy and reliability
- Built-in preamp produces strong signal, enabling location of analyzer up to 3000 ft. (914 m) from sensor
- Union-mount style sensor and mounting tee to conveniently install and remove sensor for in-line service
Included:
- Sensor with 10 ft cable
- Union mount
- Manual
Specifications:
| Body material | LCP |
| Cable Length | 3 m (10 ft) |
| Diameter | 55 mm |
| Drift | 0.03 pH |
| Electrode Material | Glass |
| Flow | 3 m/s |
| Junction | PVDF Junction |
| Mounting | Union |
| Sensitivity | < 0.005 pH |
| Sensitivity 2 | < 0.5 mV |
| Sensor Thread | 1.5" |
| Temperature Sensor | NTC 300 ohm thermistor for automatic temperature compensation and analyzer temperature readout |
Specifications
| Range | pH: 0 to 14 pH |
|---|---|
| Range | ORP: -2000 to +2000 mV |
| Range | Temperature: -5 to 95 degrees C (23 to 203 degrees F) |
| Material | Liquid Crystal Polymer (LCP) body, glass sensor |
| Weight | 0.6 kg |
| Manufacturer | HACH |
| Model No | 6058PO |
| Warranty | 12 months |
