Description

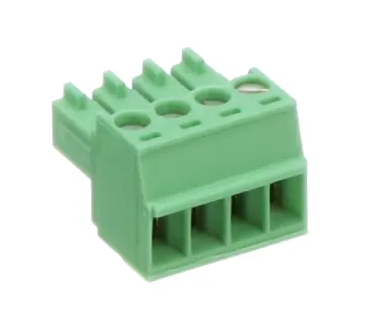

Phoenix® Connector for SSR Input, 1840382
Features:
- Polyamide Insulating Material
- Voltage: 125, Amps: 8, AWG: 30-14
- Very Economical and Low Height
- Plug-In Direction Parallel to the Conductor Axis
Specifications:
| Agency Approvals | UL, cULus, CSA, VDE |
| Alternate Manufacturer Part Number | MC 1 5/ 4-ST-3 5 |
| Approvals | CSA, VDE Gutachten mit Fertigungsüberwachung, IECEE CB Scheme, CCA, cULus Recognized, EAC |
| Color | Green |
| Cross Section Area | 1.5 mm2 (Nominal) |
| Current Rating | 8 A |
| Insulation Material | Polyamide |
| Level | Single Level |
| Mounting Type | PCB Mount |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Force | Polyamide |
| Pin Spacing | 3.5 mm |
| Pitch | 3.5 mm |
| Primary Type | PCB Mount |
| Series | Mini-Combicon MC Series |
| Stripping Length | 7 mm |
| Surge Voltage | 2.5 kV |
| Termination | Screw |
| Tightening Torque | 0.22 Nm (Minimum) |
| Type | Plug |
| Voltage Rating | 160 V |
| Wire Entry | Front |
| Wire Size | 16 AWG |
| Wire Termination Type | Screw |
Specifications
| Compliant/Standard | UL, cULus, CSA, VDE |
|---|---|
| Model No | 1840382 |
