Description

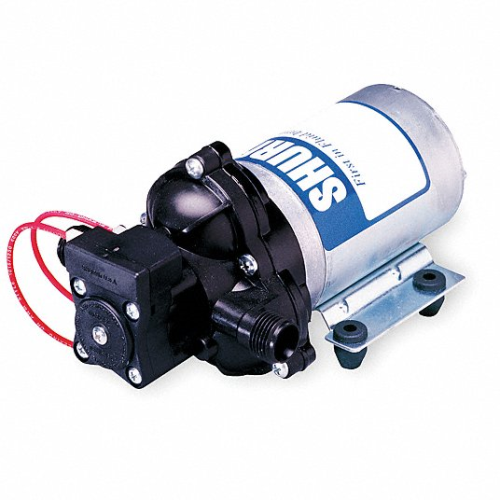

Shurflo® Diaphragm Pump, Polypropylene, 3.2 gpm Maximum, 115 VAC, 2088-394-154
Specifications:
| Item | Diaphragm Pump |
| Inlet/Outlet | 1/2"-14 MSPT |
| Housing Material - Pumps | Polypropylene |
| Maximum Temperature - Pumps | 130 °F |
| Maximum Flow | 3.2 gpm |
| Maximum Pressure - Pumps | 45 psi |
| Voltage - Pumps | 120 VAC |
| Diaphram Material | Santoprene |
| Check Valve | Viton |
| Pressure On | 25 |
| Pressure Off | 45 |
| Length | 8.6 in. |
| Width | 5 in. |
| Height | 4.4 in. |
| Prime in Feet | 9 |
| GPM @ 0 PSI | 3.2 |
| GPM @ 20 PSI | 2.41 |
| GPM @ 40 PSI | 1.84 |
| Self-Priming | Yes |
| Pressure Switch | Operates on Demand |
| Diaphragm Design | Three Chamber |
| Compliance/Certification | UL, CSA |
Specifications
| Material | Polypropylene Housing |
|---|---|
| Power | 115 VAC |
| Compliant/Standard | UL Listing and CSA |
| Manufacturer | Shurflo |
| Model No | 4UN20 |
