Description

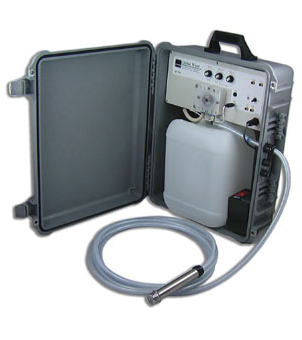

Global Water® WS700 Portable Composite/Discrete Water Sampler, CU0000Features:
- Single bottle system is ideal for wastewater, industrial and environmental sampling — easy and reliable sampling method
- State-of-the-art design gives full control over sampling — does composite or discrete sampling
- Pump and bottle is controlled to collect type, size, and timing of sample desired
- Simple to operate no programming required — great for field sampling
- Output provided for use with optional datalogger
- Lightweight and easy to carry — even with full bottle, can be suspended in manhole for storm or sewer water sampling
- Small footprint is easy to hide or camouflage and can be chained and locked to prevent vandalism
- Rugged construction for harsh environments
- Meets federal, state and local wastewater regulations
- Timed and external event triggered flow proportional sampling
- Delay timer allows starting multiple samplers in the field at the same time or to delay drawing after a triggering event for a better representation
- Adjustable and repeatable sample volume
- Peristaltic pump prevents sample contamination — automatic 15-second backflush clears pickup strainer and hose and empties hose so next sample is not contaminated
- Rechargeable battery or AC powered — low power consumption; battery will power unit for several months on standby or up to 1 hr continuous sampling with pump running
- Float switche located in bottle protects unit against overflow by turning off perstaltic pump when bottle is full
- Adjustable peristaltic pump collects 1 to 15 composite sample sizes from 50 mL to 2 L plus full bottle discrete setting or to a single sample time interval from 5 min. to 12 hrs. plus and external trigger mode for flow proportional samples
- CE Certified
- Optional external pulse-type flow meter can control water sample interval for true flow proportional sampling — Global Water® Open Channel Flow Monitor can provide flow proportional output signal for triggering the WS700 samplers; check for other options for third party flow meter with 4-20 mA output
- Water/wastewater treatment
- Stormwater
- Industrial discharge
- Waste collection systems
- Rivers/streams
- 2.5-gallon polyethylene sample bottle for collecting composite samples
- One peristaltic sampling pump
- Circuit board control panel enclosed logic timer/controller
- 12 V 5 AH rechargeable gel cell battery
- Battery charger
- One 15 ft. reinforced PVC sample pickup hose with removable debris strainers
- Rugged, rainproof, lockable carrying enclosure
| Operating Temperature | 32 ° to 158 °F (0 ° to 70 °C) | |
| Materials | Enclosure | Expanded UV protected PVC |
| Bottle | 2.5-gallon Polyethylene | |
| Pickup Hose | 15 ft. reinforced PVC, 1/4 in. I.D. polyethyleneflexible section with intake strainer | |
| Pump Tubing | Neoprene, 1/4 in. I.D., 7/16 in. O.D. | |
| Sample Pump | Flow Rate | 1000 mL per minute at a 4 foot head |
| Type | Peristaltic | |
| Maximum Lift | ~ 20 ft. | |
| Battery | Type | Rechargeable 5 AH Gel Cell |
| Life | Pump running continuously under load: ~ 1 hourStandby: 3 months while still retaining enough power to run pump to capacity | |
| Start Delay | 16 time settings from 0 to 12 hours | |
| Composite Interval | 15 time settings from 5 min. to 12 hrs. plus an ExternalTrigger mode setting | |
| Sample Size | 15 composite sample sizes from 50 mL to 2 L plus a FullBottle discrete setting (approximate sies at 4 ft. head) | |
| External Trigger Input | 250 mS minimum pulse widthSwitch closure or 4-24 VDC | |
| Pulse Output | 5 VDC one-second pulse1000 ohm output impedance | |
| Bottle Switch Input | Switch closure inputFloat read switch in bottle | |
| Rain and Water Sensors | Optional moisture sensors or switch closure inputs | |
| Internal Fuse | 10 A Slow-Blow | |
| Dimensions of Sampler, H x W x D | 22 x 17 x 9 in. (56 x 43 x 23 cm) | |
| Weight | 20 lb. (9 kg) | |
| Shipping Weight | 22 lb. (10 kg) | |
Specifications
| Manufacturer | Global Water |
|---|---|
| Model No | CU0000 |
