Description

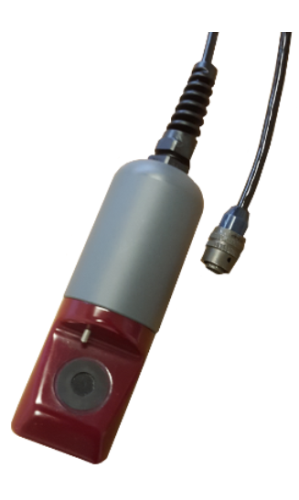

Insite Instrumentation® Portable Optical Dissolved Oxygen (DO) Sensor for IPM Meter, PDO-20-PC
Features:
- Incorporates optical fluorescent technology, solid state electronics, and unique side mount element
- InsiteIG® PDO sensor is only portable optical DO sensor that does not require expensive replacement caps
- Nitric Oxide does not interfere with InsiteIG® portable sensor
- Exceptionally stable, and calibration is not required on a routine basis, nor is calibration
required with initial use.
Specifications:
| Repeatabilty | 0.01 ppm |
| Response Time | 95% in under 60 seconds |
| Resolution | 0.01 ppm below 4.00 ppm, 0.1 ppm above 4.0 ppm |
| Drift | Less than 1% per year |
| Sensor Cable Length | 20 ft |
| Units of Measure | mg/L, ppm, % saturation |
| Sensor Connector | Yes |
Specifications
| Range | Dissolved Oxygen: 0 to 25 ppm |
|---|---|
| Range | Temperature: 0 to 60 degrees C |
| Accuracy | Dissolved Oxygen: 1% of reading or 0.05 ppm, whichever is greater |
| Manufacturer | Insite Instrumental Group (InsiteIG) |
| Model No | PDO-20-PC |
