Description

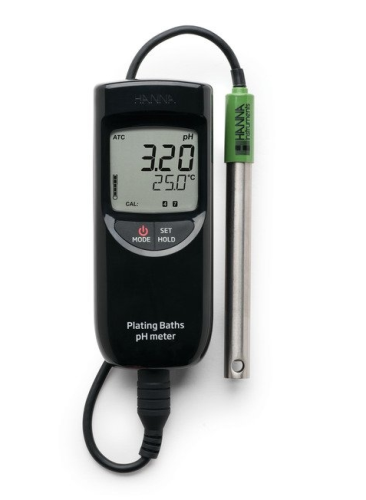

Hanna Instruments® Portable Plating pH Meter Kit,with Electrode, DIN Connector, HI99131
Features:
- Designed for pH testing of plating baths—specifically to ensure additives and chemicals are working properly for even and consistent plating
- Specialized probe has a titanium body, flat tip, and porous PTFE junction making it ideal for measuring chemical baths
- ±0.02 pH accuracy
- Multilevel LCD display with on-screen electrode condition and low battery indicators
Includes:
- HI629113 (92-1624-42) preamplified pH probe with built-in temperature sensor and titanium body, Quick DIN connector with 1 m (3.3 ft.) cable
- HI70004P (91-2704-04) pH 4.01 Buffer sachet
- HI70007P (91-2704-07) pH 7.01 Buffer sachet
- HI700601 (92-1624-27) Electrode cleaning solution (2 sachets)
- 100 mL beaker (1 pc.)
- Alkaline batteries: 1.5V AAA (3 pcs.)
- Rugged carrying case
- Calibration certificate of meter
- Calibration certificate of probe
- Instruction manual
Specifications:
| pH Resolution | 0.01 pH / 0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| mV Resolution | 4 mV |
| mV Accuracy | ±1 mV (pH-mV) |
| Temperature Resolution | 0.1 °C/0.1 °F |
| Temperature Accuracy (@25°C/77°F) | ±0.5 °C up to 60 °C; ±1.0 °C outside ±1.0 °F up to 140 °F; ±2.0 °F outside |
| Temperature Compensation | Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F |
| Power Consumption | approx. 1400 hours of continuous use |
| Recommended Probe | HI629113 preamplified pH probe with built-in temperature sensor and titanium cage working as matching pin, Quick DIN connector with 1 m (3.3 ft.) cable (included) |
Specifications
| Range | pH: -2.00 to 16.00 pH / -2.0 to 16.0 pH |
|---|---|
| Range | mV: +/- 825 mV (pH-mV) |
| Range | Temperature: -5.0 to 105.0 degrees C/23.0 to 221.0 degrees F |
| Power | 1.5V AAA batteries (3 pcs.) |
| Application | pH of plating baths |
| Accuracy | pH: +/- 0.02 pH / +/- 0.1 pH at 25 degrees C |
| Operating Environment | 0 to 50 degrees C (32 to 122 degrees F); Relative Humidity maximum 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2 in.) |
| Weight | 199 g (6.91 oz.) with batteries |
| Manufacturer | Hanna Instruments |
| Model No | HI99131 |
| Warranty | 2 years |
