Description

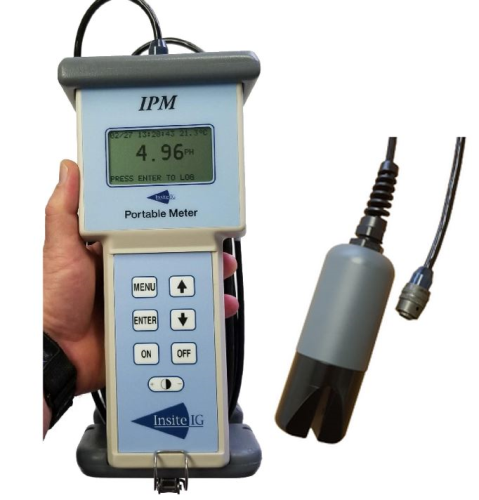

InsiteIG™ Portable Suspended Solids Meter Kit — IPM w/PSS Sensor & 20ft Cable, 250 to 30,000 mg/L Range, IPM/PSS-20-PCFeatures:
- Meter with advanced electronics which provides exceptional functionality while maintaining easy-of-use
- Single channel instrument can accept standard sensors for not only suspended solids (SS), but also dissolved oxygen (DO), pH or oxygen reduction potential (ORP) sensors and will automatically configure itself for correct operation
- Equipped with quick-disconnect — mil-spec connectors that allow quick sensor swaps
- 250 point data logger which records sensor type, reading, date, time & location
- PortaLog® software included that offers sort options to customize download & reporting data
- Rechargable batteries provide 8+ hours use between charges
- Sensors are equipped with PortaCaddie® that helps prevent tangling of cable as well as providing a secure transport and storage tool for meter, cable & sensor
- IPM — portable meter
- PSS — portable suspend solids sensor — which includes 250-30,000 mg/L range sensor, 20 ft. cable & PortaCaddie® organization tool
| IPM Meter | |
| # Channels | Single |
| Sensor Configuration | Automatic |
| Sensor Types Accepted | Standard range or narrow range SS;DO, ORP, or pH |
| Water Resistant Housing | Yes |
| Connector Type | Mil-spec |
| Display | LCD graphical |
| Backlit | Yes |
| Contrast Adjustable Display | Yes, via keypad |
| Memory | 250 point data log |
| Output | USB with provided cable |
| Operating Temperature | -10 to 60 °C |
| Battery | Rechargable, 8+ hours/charge |
| PC Software Included | PortaLog® |
| PSS Sensor | |
| Measuring Range | 250-30,000 mg/L |
| Operational Technology | Near Infrared |
| Accuracy | ± 5% of reading or ± 100 mg/L, whichever is greater |
| Repeatability | ± 1% of reading or ± 2 mg/L, whichever is greater |
| Response Time | 95% in under 60 seconds |
| Resolution | 1 mg/L below 1000 mg/L;10 mg/L from 1000 to 9999 mg/L100 mg/L above 10,000 mg/L |
| Operating Temperature | 0 to 60 °C |
| Cable Length | 20 ft. |
| Storage System | PortaCaddie® |
