Description
YSI Inc.® PP Quatro-4 P pH/ORP Handheld Meter Kit, 606967
Features:
- ProQuatro handheld multiparameter meter measures a variety of combinations of dissolved oxygen, conductivity, specific conductance, salinity, resistivity, total dissolved solids (TDS), pH, ORP, pH/ORP combination, ammonium (ammonia), nitrate, chloride and temperature
- User–replaceable cables and sensors
- Real-time salinity compensation of DO measurements
- Quick response times
- Impact-resistant, waterproof case
- Built-in micro USB port for simplified access to your data in field or lab

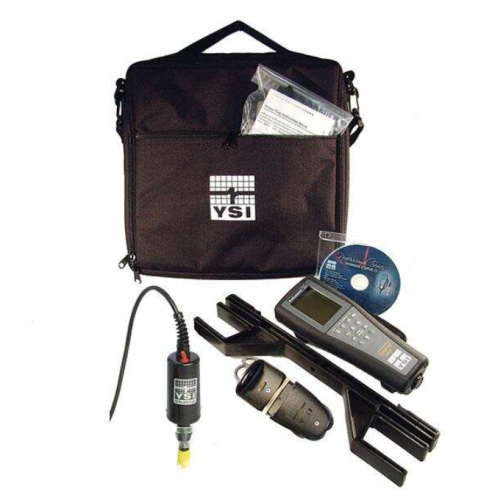

Includes:
- ProQuatro handheld
- 605790- 4 ISE/ISE/DO/Cond/Temp cable
- 605101 - pH sensor
- 605203 - polarographic DO sensor
- 603075 - soft-sided carrying case
- 605102 - ORP sensor
Specifications:
| Power Requirements | 2 alkaline C-cells provide 80 continuous hours at ambient temperature without backlight; USB power or optional wall power can be supplied via micro USB port |
| Data Output | Built-in micro USB port for on-the-go data exports via direct connection to the included USB stick |
| Software Updates | User-upgradeable firmware via USB and website |
| Storage Temperature | -20 to 70 °C |
| Display | Graphic |
| Backlit | Yes |
| Memory | 5000 datasets; 50 unique data identifiers |
| Logging Modes | Single point or continuous with auto stable feature |
| Choice of Cables Available | Field Cables Standard lengths of 1, 4, 10, 20 or 30 meters with single port, dual port or Quatro cables; Lab Cables BOD sensor includes 2-meter cable; 1 or 4 meters on lab pH, ORP and pH/ORP cables |
| pH Units (with Glass Combination Electrode) Units | mV, pH units |
| pH Resolution | 0.01 units |
| pH Calibration | 1, 2, or 3 point (user selectable); US, NIST or Custom Buffers |
| ORP (Platinum Button) Units | mV |
| ORP Resolution | 0.1 mV |
| ORP Calibration | 1 point |
| Dissolved Oxygen (Polarographic or Galvanic) @ -5 to 50 °C Temperature Compensation Range Units: | % Saturation; mg/L, ppm |
| Dissolved Oxygen (Polarographic or Galvanic) @ -5 to 50 °C | 0 to 500% Saturation; 0 to 50 mg/L (ppm) |
| Dissolved Oxygen Resolution | 0.1% or 1% air saturation (user selectable); 0.1% air saturation |
| Dissolved Oxygen Accuracy | 0 to 200%: ±2% of reading or 2% air saturation, w.i.g. 200 to 500%: ±6% of reading; 0 to 20 mg/L: ±2% of reading or 0.2 mg/L, w.i.g. 20 to 50 mg/L: ±6% of reading 0.1% or 0.01 mg/L (user selectable) |
| Dissolved Oxygen Calibration | 1 or 2 point with zero |
| DO Membrane Response Times (T95; 100%-0) and Flow Dependence | 1.25 mil PE = 8 seconds and 6 in/sec flow 2.0 mil PE = 17 seconds and 3 in/sec flow 1 mil Teflon® = 18 seconds and 12 in/sec flow |
| Conductivity / Specific Conductance (Four Electrode Cell) Units | μS, mS |
| Conductivity Range | 0 to 200 mS/cm (auto-range) |
| Conductivity Resolution | 1 m, 4 m cables: Range dependent; 20 m cable: 0 to 0.500 mS/cm: 0.001 0.501 to 50.00 mS/cm: 0.01 50.01 to 200 mS/cm: 0.1 |
| Conductivity Accuracy | 1 m, 4 m cables: ±0.5% of reading or 0.001 mS/cm, w.i.g.; 20 m cable: ±1% of reading or 0.001 mS/cm, w.i.g. |
| Conductivity Calibration | 1 point |
| Salinity Units | ppt, PSU |
| Salinity Range | 0 to 70 ppt |
| Salinity Resolution | 0.01 ppt |
| Salinity Accuracy | ±1.0% of reading or ±0.1 ppt, w.i.g. |
| Salinity Calibration | 1 point |
| Total Dissolved Solids (TDS) (Calculated) Units | mg/L, kg/L, g/L |
| Total Dissolved Solids Range | 0 to 100 g/L; TDS constant range 0.3 to 1.0 (0.65 default) |
| Total Dissolved Solids Resolution | 0.001, 0.01, .01 g/L |
| Total Dissolved Solids Accuracy | No stated accuracy spec |
| Resistivity (Calculated) Units | ohm-cm, kohm-cm, Mohm-cm |
| Resistivity Range | 0 to 2 Mohms |
| Resistivity Resolution | 0.001, 0.01, 0.1 ohms |
| Resistivity Accuracy | ±0.1% Full Scale |
| Ammonium* (Ion Selective Electrode) Units: | mg/L-N, mV |
| Ammonium Range | 0 to 200 mg/L-N 0 to 30 °C |
| Ammonium Resolution | 0.01 mg/L |
| Ammonium Accuracy | ±10% of reading or 2 mg/L-N, w.i.g. |
| Ammonium Calibration | 1, 2, or 3 point (user selectable) |
| Chloride* (Ion Selective Electrode) Units | mg/L-Cl-, mV |
| Chloride Range | 0 to 1000 mg/L 0 to 40 °C |
| Chloride Resolution | 0.01 mg/L |
| Chloride Accuracy | ±15% of reading or 5 mg/L, w.i.g. |
| Chloride Calibration | 1, 2, or 3 point (user selectable) |
| Nitrate* (Ion Selective Electrode) Units | mg/L-N, mV |
| Nitrate Range | 0 to 200 mg/L-N 0 to 30 °C |
| Nitrate Resolution | 0.01 mg/L |
| Nitrate Accuracy | ±10% of reading or 2 mg/L-N, w.i.g. |
| Nitrate Calibration | 1, 2, or 3 point (user selectable) |
| Temperature Units | Conductivity / Specific Conductance |
| Temperature Resolution | Field Cables: 0.1 °C Lab Cables: 0.1 °C |
| Temperature Accuracy | Field Cables: ±0.2 °C; ±0.3 °C cables over 45 m; Lab Cables: ±0.35 °C |
| Barometric Resolution | 0.1 mm Hg |
| Barometric Accuracy | ±1.5 mm Hg from 0 to 50 °C |
| Waterproof | IP-67 (even with battery cover off); floats |
| Languages | English, Chinese (Simplified & Traditional), French, German, Italian, Japanese, Norwegian, Portuguese, Spanish |
| Country of Origin | Assembled in the US |
Specifications
| Range | pH: 0 to 14 pH units |
|---|---|
| Range | ORP: -1999 to 1999 mV |
| Range | Temperature: With field cables: -5 to 70 degrees C; With lab cables: 0 to 40 degrees C |
| Range | Barometric: 375 to 825 mm Hg |
| Power | 2 alkaline C-cell batteries (USB power/optional wall power supplied via micro USB) |
| Accuracy | pH: +/- 0.2 units, ORP: +/- |
| Compliant/Standard | RoHS, CE, FCC |
| Operating Environment | -10 to 60 degrees C |
| Connectivity | Input: |
| Connectivity | Output: Built-in micro USB port for data exports via direct connection to included USB stick |
| Dimensions | 8.3 cm width x 21.6 cm length x 2.3 cm depth |
| Weight | 475 grams (1.05 lbs.) including batteries |
| Manufacturer | YSI Inc (Yellow Springs Instruments) |
| Model No | 606967 |
| Warranty | 3-year instrument; 2-year cable |
