Description

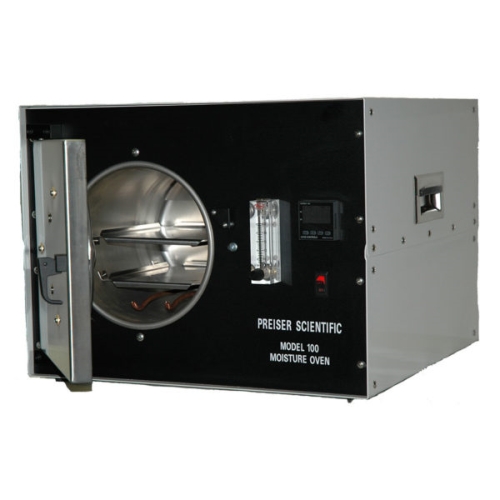

The Preiser Model 100 Moisture Oven is designed to determine the moisture content of coal as per ASTM D3173. It consists of a specially designed low temperature oven coupled with a microprocessor based temperature control system for drying samples up to 115ºC.
Features
- The oven, controls, and air system are housed in a compact “table-top” cabinet.
- The cylindrical stainless steel drying chamber is 8” diameter x 9½” deep.
- Input air passes through the manual control flow meter which is adjustable from 0-25 L/min.
- After it passes through the flow meter, it is preheated and passed into the oven chamber, over the samples, and out the rear mounted exhaust port.
- Accessory Z91-1632-05 and Z91-1632-06 Combination Crucible/Weighing Bottle Trays permit multiple samples to be dried at the same time in a convenient manner.
- Overall Size: 19-1/4W x 18-1/2L x 14-3/4H
- Net Weight: 45lb (20kg)
Supplied with
- An air renewing system.
- Flow meter.
- Two 5”W x 8”L rectangular stainless steel shelves.
Additional Models
| Catalog Number | Volts/Phase/Hertz |
| Z91-1632-01 | 120/1/50-60 |
Specifications
| Material | Stainless Steel |
|---|---|
| Power | 230 V/1 ph/50-60 Hz/5amp |
| Application | For drying samples up to 115ºC |
| Compliant/Standard | ASTM D-3173 |
| Other | Drying chamber is 8" diameter x 9½" deep |
| Dimensions | 19-1/4"W x 18-1/2"L x 14-3/4"H |
| Weight | 45lb |
| Manufacturer | Preiser Scientific, Inc. |
| Model No | 100 |
