Description

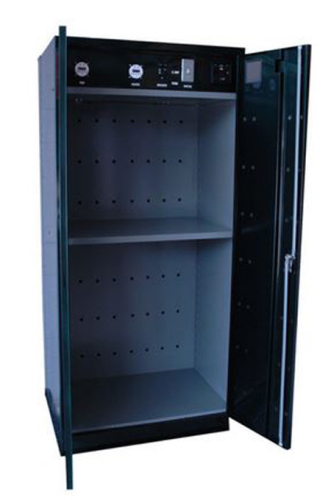

Preiser Model 200 Air Drying Oven 120 Vac/1 Ph/60 Hz
Preiser Air Drying Oven provides for partial drying of coal to bring it to near equilibrium with room temperature before further reduction and division in accordance with ASTM D3302. Oven is often used for drying float/sink samples
Features
- Large and roomy mechanical convection oven that contains 6 shelves
- Control panel with solid-state digital temperature control that maintains temperature uniformity throughout the oven using two 24-hour interval timers to operate the heating elements and the fan motor
- Temperature range from 0-105 degrees F
- Can be used with two different drying trays. One tray is 9 7/8 in. W x 21½ in. L x 1½ in. H. The second tray is 16 in. W x 16 in. L x 1½ in. H.
- Dimensions: 35 in. W x 78½ in. H x 29½ in. D; Weight: 290 lb.
- For operation at 120 Vac /1 Ph / 60 Hz
Supplied with
- Solid-state control panel consisting of digital temperature control and two 24-hour interval timers.
- Six shelves
Additional models:
| Catalog Number | Volts / Phase / Hertz |
| Z91-2290-81 | 240 / 1 / 50 |
| Z91-2290-82 | 240 / 1 / 60 |
| Z91-2290-83 | 120 / 1 / 60 |
Specifications
| Range | Temperature range from 0-105°F |
|---|---|
| Capacity | 6 Shelf for multiple trays |
| Power | 120 V / 1 / 60 HZ |
| Application | Air drying coal samples |
| Compliant/Standard | ASTM D3302 |
| Dimensions | Dimensions: 35W x 78½H x 29½D |
| Weight | 290lb. |
| Manufacturer | Preiser Scientific, Inc. |
| Model No | 200 Air Dry Oven |
