Description

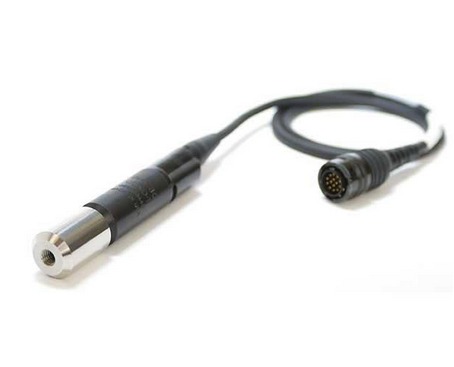

YSI® Pro Series Conductivity Sensor with 1 m Cable, 60530-1
Features:
- Built-in temperature and conductivity sensors — cables ONLY work with Pro30, ProQuantro, and ProPlus YSI water quality meters
- The 60530 is a true field cable with MS (military spec) connectors, two-year warranty, and rugged, weighted probe guard
- Cables can be ordered in 1-, 4-, 10-, 20-, and 30-meter lenghts
- Cables over 1-meter come with the 603062 cable management kit
- Cables come with sensor built directly into cable so there is no need to order conductivity sensor
- This combination cable allows for measurement of conductivity, specific conductance, salinity, total dissolved solids and temperature
Specifications:
With Cable and Sensor connnected to Pro30 Conductivity Meter (6050030):
| Sensor Type | Four-electrode cell |
| Conductivity Units | mS, μS |
| Conductivity Accuracy | 1 or 4 m cable: ±1.0% of the reading or 1.0 μS/cm, whichever is greater; 10, 20, or 30 m cable: ±2.0% of the reading or 1.0 μS/cm, whichever is greater |
| Conductivity Resolution | 0.0001 to 0.1 mS/cm (range dependent) |
| Salinity Units | ppt, PSU |
| Salinity Accuracy | ±1.0% of the reading or 0.1 ppt, whichever is greater |
| Salinity Resolution | 0.1 ppt |
| Temperature Units | C or F |
| Temperature Accuracy | ±0.2 °C |
| Temperature Resolution | 0.1 °C |
| Total Dissolved Solids (TDS) Units | kg/L, g/L |
| TDS Constant Range | 0.30 to 1.00 (0.65 default) |
| TDS Accuracy | Dependent on temp, conductivity and TDS constant; calculated from those parameters |
| TDS Resolution | 0.001, 0.01, 0.1 g/L |
Specifications
| Manufacturer | YSI |
|---|---|
| Model No | 60530-1 |
| Warranty | 2 year cable/sensor |
