Description

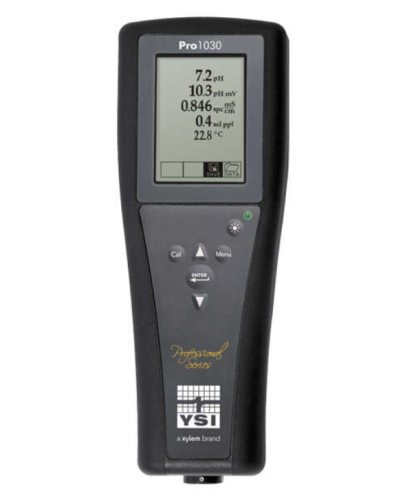

YSI® PRO1030® pH/Conductivity/Temperature Meter, Handheld, 6051030
Features:
- Rugged and reliable multiparameter meter for measurement of either pH or ORP along with temperature, conductivity, specific conductance, salinity and total dissolved solids (TDS)
- User-replaceable sensors (pH and ORP sensors) and cables
- Convenient calibration routine feature makes it extremely user friendly
- Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument provides years of sampling even in harshest field conditions
- Super-stable 4-electrode conductivity cell is built into cable and will provide years of accurate data
- Cells are designed for rugged field performance and are easily cleaned and require minimal maintenance.
- Smart calibration routine allows easy calibrations with the press of a button, remembers previous cal values and simply walks you through the calibration
- Stores 50 data sets
- Graphic, backlit display and glow in the dark keypad
- Available with 1, 4, 10, 20, or 30-meter cables (4-meter and longer cables include cable management kit)
- View display with polarized sunglasses on
- Multiple languages include English, Spanish, French and Portuguese
Note:
- Cables and sensors must be ordered separately
Specifications:
| Connector | MS (military spec) waterproof with bayonet lock |
| Digital / Digital Sensors | Analog |
| Equipment used with | ProSeries 1030-x cables |
| Graphic Display | Graphic display with detailed Help, backlit display AND keypad |
| Languages | Spanish, English, German, French |
| Logging Capabilities | Single |
| Memory | 50 data sets |
| Multiparameter | Yes |
| Parameters Measured | pH, ORP, salinity, conductivity, specific conductance, Total Dissolved Solids (TDS), temperature |
| Power | 2 alkaline C-cells provide 425 continuous hours at ambient temperature without backlight |
| Sampling | Yes |
| Unit of Measure | Salinity-ppt, pH-units, Conductivity-mS, ORP-mV, Total Dissolved Solids (TDS)-g/L, Temperature-°C |
| User Calibratable | Yes |
| User Replaceable | Yes |
| Warranty | 3-year instrument; 2-year field cables |
| Waterproof | floats, IP-67 (even with the battery cover off) |
Specifications
| Range | pH: 0 to 14 units, ORP: -1500 to 1500 mV |
|---|---|
| Range | Conductivity: 0 to 500 mS/cm, Salinity: 0 to 70 ppt |
| Range | Total Dissolved Solids (TDS): 0 to 100 g/L, TDS Constant: 0.30 to 1.00 (0.65 default) |
| Range | Temperature: -5 to 55 degrees C |
| Power | 2 alkaline C-cells |
| Compliant/Standard | CE, WEEE, IP-67, 1-meter drop test, RoHS, Assembled in USA |
| Manufacturer | Yellow Springs Instruments (YSI) |
| Model No | 6051030 |
| Warranty | 3-year instrument; 2-year field cables, 1-year pH and ORP Sensor |
