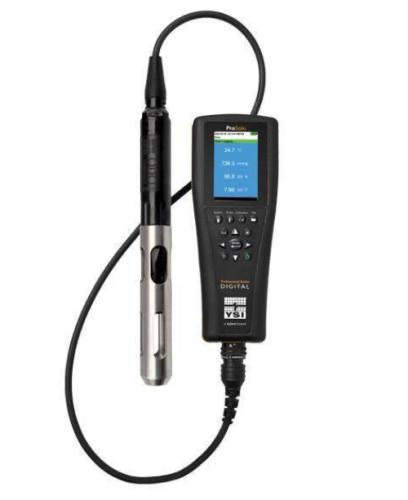

YSI® ProSolo® Digital Handheld Portable Meter Kit with ODO/T Probe Assembly, 4 m Cable, and Case, 626663
Features:
- ODO/T probe assembly pairs with ProSolo Handheld to form a complete sampling system
- Featuring integral, digital sensors, ODO/T is plug-and-play which minimizes time spent on instrument setup
- Pro DIGITAL technology allows the handheld to automatically recognize connected sensors, so there is no need to tell instrument what is connected
- Optical Dissolved Oxygen (ODO) technology is non-consumptive, meaning oxygen is not consumed during the measurement
- Flow dependence is non-existent and no stirring is required, resulting in most accurate DO measurements available from probe
- ODO sensor is not susceptible to interferences from other gases, drifts less and holds calibration longer than membrane covered sensors
- Maintenance is easy with simple, threaded optical cap that is good for at least two years
- ProSolo Handheld has easy-to-read color display, large capacity memory, intuitive interface, rechargeable battery, and powerful data management software (KorDSS) for powerful, yet convenient sampling experience
- Great for surface water, groundwater, coastal/estuarine, aquaculture, and wastewater applications!
Specifications:
| Calibration | 400 detailed calibration records can be stored and are available to view, download, and print |
| Data Management |
100 user-defined sites and 100 user-defined data ID tags; site pictures can be sent to the handheld via KorDSS |
| Display |
Color, LCD graphic display; 3.9 cm width x 6.5 cm height |
| Languages | English, Spanish, German, French, Italian, Norwegian, Portuguese, Japanese, Chinese (Simplified & Traditional), Korean, Thai |
| Logging Capabilities | Single point or continuous with autostable feature |
| Barometer Units | mm Hg, in. Hg, mbar, psi, kPa, atm |
| Barometer Accuracy | +/- 1.5 mm Hg from 0 to 50 degrees C |
| Barometer Resolution | 0.1 mm Hg |
| Sites and Data ID | 100 user-defined sites and 100 user-defined data ID tags / Site pictures can be sent to handheld via KorDSS Sofware |
| Memory | > 100,000 data sets |
| Power | Rechargeable lithium-ion battery pack provides ~48 hours with the handheld only; battery recharge time is ~9 hours with the AC power adapter; the instrument can also be powered via AC or external power pack through the USB port |
| Storage Temperature | 0 to 45 °C (32 to 113 °F) with battery installed; 0 to 60 °C (32 to 140 °F) without battery installed |
| Probe Type | Optical Luminescence |
| Probe Size | 2.46 cm diameter (cable options for 1, 4, 10, 20, 30, 50, and 100 m lengths) |
| Dissolved Oxygen Accuracy | 0 to 200%: +/- 1% of reading or 1% saturation, whichever is greater / 200 to 500%: +/- 8% of reading / 0 to 20 mg/L: +/- 0.1 mg/L or 1% of reading, whichever is greater / 20 to 50 mg/L: +/- 8% of reading |
| Dissolved Oxygen Resolution | 0.01 mg/l and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range) |
| Temperature Measurement | Thermistor |
| Temperature Units | Degrees C, degrees F or K |
| Temperature Accuracy | +/-0.2 degrees C |
| Temperature Resolution | 0.1 degrees C or 0.1 degrees F (auto-adjusts based on range) |
Specifications
| Range | Dissolved Oxygen: 0 to 500% / 0 to 50 mg/l |
|---|---|
| Range | Temperature: -5 to 70 degrees C (temperature compensa |
| Range | Barometer: 375 to 825 mm Hg |
| Power | Rechargeable lithium-ion battery pack, AC adapter, or ex |
| Compliant/Standard | CEC, CE; RoHS; IP-67; WEEE; FCC; UN Part III, Section 38.3, Test methods for lithium-ion batteries (Class 9) |
| Operating Environment | 0 to 50 degrees C (32 to 122 degrees F) |
| Connectivity | Built-in micro USB On-The-Go port for PC connection, recharging/powering handheld and connecting directly to a USB stick |
| Dimensions | W x L x D: 8.3 x 21.6 x 5.6 cm / 3.27 x 8.5 x 2.21 in. |
| Weight | 567 grams / 1.25 lbs (with battery) |
| Manufacturer | YSI (Yellow Springs Instruments) |
| Model No | 626663 |
| Warranty | 3 yr on meter / 2 years on cable, probe and sensor cap |
