Description
PSB4 Water Sampler with Battery Charger, 2 gal Capacity

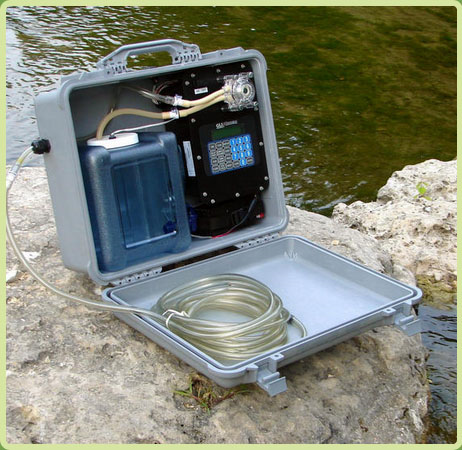

Lightweight, self-contained and designed to be very portable, this is the smallest version of our automatic sampler. The Pelican case is extremely durable and strong. It uses a 2.5 gallon bottle for Composite only sampling. It is packaged with hose, strainer, battery, charger, bottle (with bottle full shut-off) and a controller with many of the same programs available on larger units. When closed, it is rated NEMA 6P. Power can be supplied through the internal battery or by external power supply.
Features:
- Small Self Contained Unit
- Clear Pump for Visibility
- 1/4 Inch ID Tube
- Single Bottle Only
- Light Weight
- Ultrasonic or Smart Continuity Sensor
- Bottle Full Shutoff
Configuration No. PSB4A2A2A1F2:
| Power Source | 12 V, 8 amp-hour sealed lead acid battery |
| Battery Charger Type | 12 VDC 750 mA 3-stage charger, 110-200 VAC Input (lead acid battery) |
| Input/Output | Contact closure input |
| Liquid Sensor | Ultrasonic sensor |
| Bottle Configuration | Single bottle (for composite sampling) |
| Bottle Type | 2-gallon square plastic bottle with spout |
| Hose Type | PVC 1/4-inch inside diameter hose x 10 ft |
| Strainer Type | PVC strainer (1/4-inch) |
Specifications
| Material | NEMA 4X/NEMA 6 structural resin housing around electromechanical components |
|---|---|
| Power | Standard: Internal 12-volt, 8-amp-hour battery Optional: Internal 12-volt, 18-amp-hour battery or 110/220 VAC power supp |
| Operating Environment | 32-122 °F (0-50 °C) |
| Dimensions | W 20.62i n. (52.4 cm) x H 16.87 in. (42.8 cm) with carrying handle vertical x D 8.12 in.(21.6 cm) |
| Weight | 16 lbs (7.26 kg) with empty sample bottle and without battery |
