Description

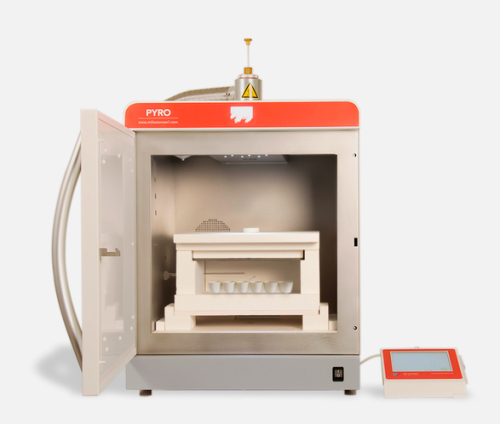

Milestone® PYRO® Advanced, Rapid Microwave Ashing System, 220 V / 50 or 60 Hz, 47210
Features:
- Excellent alternative to conventional muffle furnace techniques and has helped laboratories in a variety of industries improve their efficiency
- Provides significant improvement in internal quality control and in some cases sample preparation procedures
- Significantly reduces ashing times, often from hours to minutes
- Microwave cavity made of 18/8 stainless steel; largest microwave cavity: 43 x 40 x 41 (H) cm (70.5 liters)
- Inlet/Outlet ports: upper flange 36 mm ID, lower flange 19 mm ID, plus additional ports on the side walls
- Chassis protected against corrosive media with polymer coating
- Door completely made of 18/8 stainless steel with heat protection; multiple independent safety interlocks to prevent microwave emission in case of improper closure or misalignment
- Built-in exhaust system, located above the cavity and separated from electronics to prevent corrosion, with software-controlled variable speed; “Venturi effect”-based blower for enhanced airflow through the microwave cavity
- Dual magnetron system with rotating diffuser for homogeneous microwave distribution in the cavity; two 950 Watt rated magnetrons, for a total of 1900 Watt; exclusive magnetron protection from reflected microwave power; continuous and PID-controlled microwave emission at all power levels
- Safety standards: EN61010-1:2001; EN61010-2-010:2003; UL61010-1:2004; CAN/CSA-C22.2 No 61010-1:2004; CAN/CSA-C22.2 No 61010-2-010:2004; IEC 61010-2-010:2003; EN61326-1:2006
- Control terminal: 660 touch screen; 6,5’’ TFT display; 640 x 480 VGA resolution with 64 k colors; 5 USB ports, 1 RS-232 port, 1 LAN port, 2 video ports; 480 touch screen; 4,3’’ TFT display; 480 x 272 VGA resolution with 16M colors
- Icon-driven multi-language (Chinese, English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish and Turkish) operating software allowing the user to edit, save and run a virtually unlimited number of methods
- Weight: ca. 85 kg; dimensions: 54 x 64 x 69 (H) cm; power supply: 230-240 V/50 or 60 Hz, 3.5 kWatt
Specifications
| Range | Temperature: room temperature to 800 degrees C |
|---|---|
| Capacity | Chamber: 70.5 liters |
| Power | 230-240 V/50 or 60 Hz, 3.5 kWatt |
| Compliant/Standard | EN61010-1:2001; EN61010-2-010:2003; UL61010-1:2004; CAN/CSA-C22.2 No 61010-1:2004; CAN/CSA-C22.2 No 61010-2-010:2004; IE |
| Connectivity | 5 USB ports, 1 RS-232 port, 1 LAN port, 2 video ports |
| Dimensions | 54 x 64 x 69 (H) cm |
| Weight | 85 kg |
| Manufacturer | Milestone |
| Model No | 47210 |
