Description

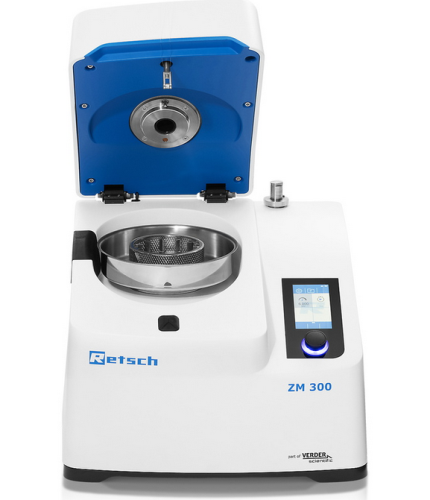

Verder Scientific® Retsch® Mill, Ultra Centrifugal ZM 300, 120 V/50-60 Hz, 208240002
Features:
- Variable speed from 6,000 to 23,000 rpm
- Up to 20 % finer particles than with ZM 200
- Sample throughput increased up to 15 %
- Temperature monitoring
- Neutral-to-analysis sample preparation
- Very short grinding time
- Optional volume cassette for batch sizes up to 600 mL
- Efficient cooling of sample and grinding tools
- Improved sample discharge from the grinding chamber
- Particularly suitable for large volumes
- Sample bottles of 0.25 / 0.5 / 3 and 5 liters
- Extra cooling for temperature sensitive samples
- Better sample discharge for light sample materials
- Ideal for cryogenic grinding
- Measurement of the temperature of the cassette lid near the ring sieve
- The temperature is constantly shown in the mill’s display
- Continuous monitoring of the grinding process to detect deviations without fail
- Improved reproducibility for temperature sensitive samples
- Touch display with rotary knob for convenient parameter setting
- Cassette temperature and load shown during grinding
- Prevention of overloads by feeding the sample too quickly
- A push-fit system without screws
- Easy insertion and removal without tools
- Quick cleaning of rotors and ring sieves
- Smooth surfaces of the machine for easy cleaning
- The ideal solution for pulverizing samples that cannot be reduced to the required fineness at room temperature
- Liquid nitrogen or dry ice are used to embrittle the sample material
- Volatile components are perfectly preserved
- Cryogenic grinding is easy to perform with the ZM 300
- Recommended for plastics or very temperature-sensitive samples
Specifications:
| Feed Size* | < 10 mm |
| Final Fineness* | < 40 μm |
| Batch Size / Sample Volume* | 300 mL with standard cassette, 600 mL with volume cassette, 4500 mL / 2500 mL / 450 mL / 230 mL with cyclone |
| Speed at 50 Hz (60 Hz) | 6,000 – 23,000 min-1, freely selectable |
| Rotor Peripheral Speed | 31 – 119 m/s |
| Rotor Diameter | 99 mm |
| Types of Rotors | 6-tooth rotor / 12-tooth rotor / 24-tooth rotor |
| Material of Grinding Tools | Stainless steel, stainless steel with wear-resistant coating, titanium |
| Sieve Sizes | Trapezoid holes: 0.08 / 0.12 / 0.20 / 0.25 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm, round holes: 3.00 / 4.00 / 5.00 / 6.00 / 10.00 mm |
| Setting of Grinding Time | No |
| Collector Capacity | 900 mL with standard cassette, 1200 ml with volume cassette, 5000 ml / 3000 ml / 500 ml / 250 ml with cyclone |
| Drive | 3-phase asynchronous motor with frequency converter |
| Power Connection | 1-phase |
| Protection Code | IP 20 |
| Power Consumption | 1750 VA ((200..240V), 1400 VA (110..120V) |
| Dimensions | W x H x D (closed) 452 x 431 x 426 mm |
| Net Weight | Approx. 38 kg |
| Standards | CE |
| IQ/OQ Documentation | Available |
Specifications
| Manufacturer | Verder Scientific |
|---|---|
| Model No | 208240002 |
