Description

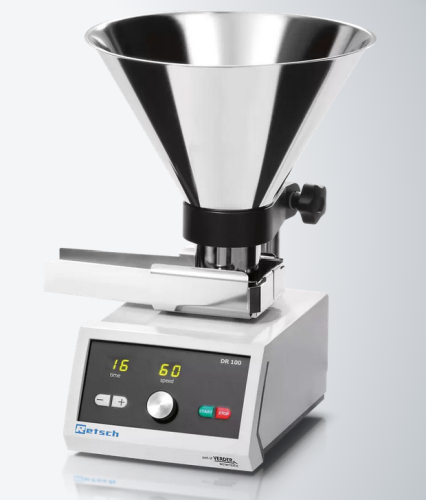

Verder Scientific® Retsch® Vibratory Feeder DR 100 for Use with ZM 200 Centrifugal Mill, 110-120 V/60 Hz, 229361002
Features:
- Strong drive for even material feed
- Material bed level and volume flow are adjustable - volume flow can be adjusted automatically to grinding capacity of the Retsch® ZM 200 Ultra Centrifugal Mill
- Digital speed setting
- Optional control via interface
- Digital time setting
- Compact control and feed unit
- Easy cleaning of push-fit chute
- Wide range of accessories including various chutes
- Made to vibrate by electromagnetic charging vibrator
- Layer height on hopper can be adjusted in accordance with product and need
- Can be integrated simply into many devices or laboratory installations
Applications:
- Agriculture
- Biology
- Chemistry / plastics
- Construction materials
- Engineering / electronics
- Environment / recycling
- Food
- Geology / metallurgy
- Glass / ceramics
- Medicine / pharmaceuticals
Specifications
| Range | Time setting: digital, 1 - 99 min / continuous operation |
|---|---|
| Range | Speed setting: digital, 1 - 99 / 0 - 5 L/min, infinitely adjustable |
| Range | Feed size: < 2 mm with 15 mm chute, < 6 mm with 40 mm chute and < 12 mm with 75 mm chute |
| Capacity | Hopper volume 2.8 L with 15 or 40 mm chute, 3.5 L with 75 or 75/40 mm chute |
| Power | 110-120 V/60 Hz, 1 phase |
| Application | Feeds bulk pourable materials |
| Compliant/Standard | CE |
| Other | Chute Length: 210 mm, Chute width: 15 mm / 40 mm / 75 mm / 75/40 mm |
| Dimensions | W x H x D: 260 x 420 x 280 mm |
| Weight | 9.7 kg |
| Manufacturer | Verder Scientific Retsch |
| Model No | 229361002 |
