Description

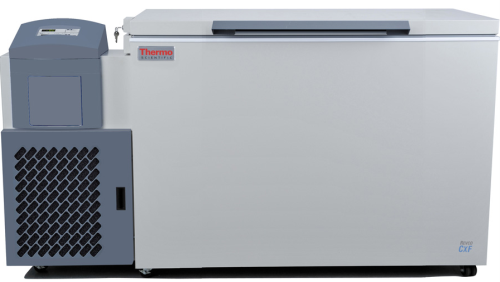

Thermo 359.6 L -86 °C to -50 °C Ultra-Low Temperature Freezer, ULT1390-10-A
Features:
- Microprocessor control panel provides easy operations
- Message center—12-character alphanumeric LED display setpoints, system status and alarm messages
- Access code for setpoint security
- Optional built-in chart recorder or data logger for continuous monitoring
- Easy change air filter
- 12.7 cu. ft. (359.6 L)
- 115 V / 60 Hz
- Exterior 40.5 in. H x 72.0 in. W x 33.4 in. D
- Interior 28.0 in. H x 42.5 in. W x 18.5 in. D
- Heavy gauge, cold-rolled powder coated steel exterior
- Stainless steel interior
- 5 in. foamed-in-place polyurethane insulation
- Ergonomic, lockable handle
- Convenient interior covers minimize sample exposure during single sample retrievals
- Optional CO2 or LN2 safety back-up system included for protection in the event of power or mechanical failure
- Heavy-duty casters with locking tandem wheel design for smooth mobility
- RS-232 and 4-20 milliamp analog outputs for independent monitoring devices and recorders
- Smart-Vue compatible
- The sales team can spec the unit that meets your need
Specifications:
| Compressor | Hermetic |
| Style | Chest |
| Condenser Type | Fin and Tube, Forced-Air Cooled |
| Certifications | cULus, CE, FDA Class 1, UL |
| Capacity | 359.6 L / 12.7 cu. ft. |
| Vial Capacity | 25200 x 2 mL |
| Monitoring Options | Alarm, Recorder |
| Refrigerant | R404A (1st stage), R508B (2nd stage) |
| Electrical Plug Type | NEMA 5-20 |
| Display | Push button LED |
| Defrost | Manual |
| Access Security | Key lock |
| Backup Systems | Optional CO2 or LN2 |
| Chart Recorder | 7-day inkless available separately |
| Water Cooled | Optional |
| Footprint | 0.106 cu. ft / 0.03 m³ |
| Voltage Compensation | Buck/Boost |
| Operating Modes | Standard operation |
| Setpoint Security | Single ID |
Specifications
| Range | -86 degrees C to -50 degrees C |
|---|---|
| Capacity | 359.6 L / 12.7 cu. ft. |
| Material | Rolled-steel exterior, stainless steel interior, polyurethane insulation |
| Power | 115 V / 60 Hz / 970 W / 16 A |
| Compliant/Standard | cULus, CE, FDA Class 1, UL |
| Connectivity | Data output RS-485 4-20mA dry contacts--standard |
| Dimensions | Exterior 40.5 in. H x 72.0 in. W x 33.4 in. D; Interior 28.0 in. H x 42.5 in. W x 18.5 in. D |
| Weight | 666 lb / 701 kg |
| Manufacturer | Thermo Scientific |
| Model No | ULT1390-10-A |
