Description

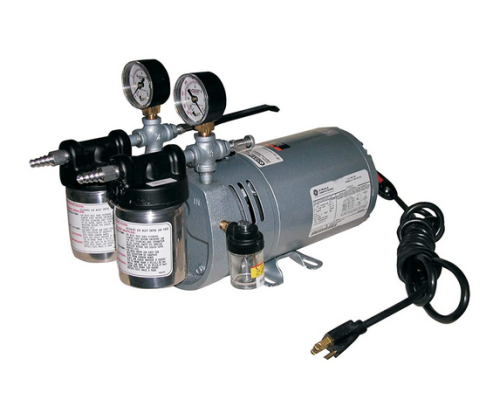

GAST™ Rotary Vane Vacuum/Pressure Pump, 10 psi/660.4 mm Hg, 115/220 V-50/60 Hz, 0523-V4-G588NDX
Features:
- The pump is readily mounted and produces steady, quiet, pulseless air delivery
- Ideal for intermittent service alternately
- The pump rotor is mounted on the motor shaft
- Composition vanes take up their own wear automatically
- Self-adjusting shaft seals prevent oil leakage
- The motor is a 1/4 hp ball bearing type, with fan-cooled internal thermal protector
Specifications:
| Item | Vacuum pump |
| Output Power | 0.25 hp |
| Inlet | 1/4 in. NPT |
| Outlet | 1/4 in. NPT |
| Free Air Flow Rate | 4.2 cfm |
| Maximum Vacuum | 26 in. Hg |
| Maximum Speed | 1725 RPM |
| Fluid Compatibility | Air |
| Power Source | Corded Electric |
| Duty Cycle | Continuous |
| Housing Material | Cast iron |
| Bearing Type | Permanently lubricated sealed bearings |
Specifications
| Power | 115/208-230 VAC, 60 Hz, Single Phase, 4.5 A |
|---|---|
| Operating Environment | Ambient: 1 degree C to 40 degrees C, Relative Humidity 8 to 100% Non-Condensing |
| Dimensions | L x W x H: 17.22 in. x 8.03 in. x 10.47 in. |
| Weight | 32 lbs. |
| Manufacturer | Gast |
| Model No | 0523-V4-G588NDX |
