Description

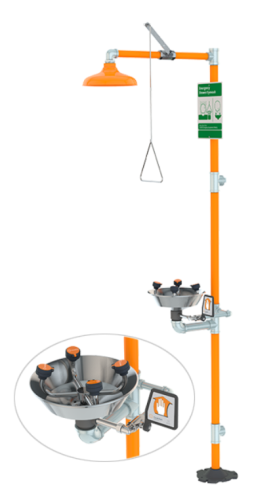

Guardian™ Safety Station with WideArea™ Eye/Face Wash, Stainless Steel Bowl, G1909
Features:
- Eye/face wash has stainless steel bowl with four GS-Plus™ spray-type outlet heads that deliver flood of water over wide area of coverage for complete rinsing of eyes and face
- Shower head is 10" diameter orange ABS plastic with 20 GPM flow control
- Shower Valve – 1" IPS chrome plated brass stay-open ball valve which is US-made with chrome plated brass ball and PTFE seals and furnished with stainless steel actuating arm and 29" stainless steel pull rod
- Spray head assembly on eye/face wash – four GS-Plus™ spray heads each of which has a “flip top” dust cover, internal flow control and filter to remove impurities from water flow
- Eye/Face Wash Bowl – 11-1/8" diameter stainless steel
- Eye/Face Wash Valve – 1/2" IPS chrome plated brass stay-open ball valve which is US-made with chrome plated brass ball and PTFE seals
- Pipe and Fittings – schedule 40 galvanized steel and furnished with orange polyethylene pipe covers for high visibility and corrosion resistance
- Supply – 1-1/4" NPT female top or side inlet
- Waste – 1-1/4" NPT female outlet which can be positioned at either 9-1/4" or 19-5/8" above finished floor by reversing lower pipe nipples
- Sign – ANSI-compliant identification sign
- Quality Assurance – valve and spray head assemblies are factory assembled and water tested prior to shipment
- Options available to be stipulated at time of purchase include:
- Thermostatic mixing valve to mix hot and cold water
- Powder coated finish on pipes and fittings
- Green or yellow plastic or stainless steel shower head
- Flashing light/alarm system that activates when unit is in use
- Modesty curtain to mount around unit
Specifications
| Manufacturer | Guardian Equipment |
|---|---|
| Model No | G1909 |
