Description

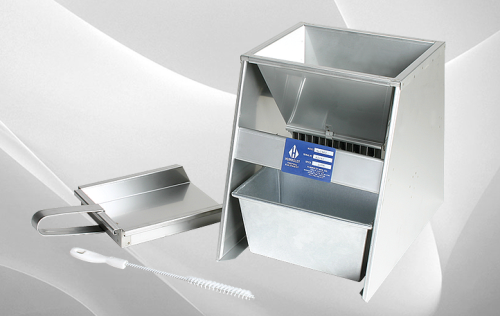

Humboldt, Riffle-type sample splitter can be used to divide or halve dry materials such as cement, gravel, powdered ores, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans. Splitter is stainless steel construction with cold-rolled steel pans. Stainless pans are available. Meets ASTM B215, C136, C702, C778, D421, D424, D457, D806, AASHTO T27, T144, T248. Features
- Chutes: (14), 3/8 (10mm) width;
- Hopper: 6- 3/4 width x 8 length (171 X 203mm);
- Pans: (4) 8 length x 5-1/4 width x 4-1/4 deep (203 x 133 x 105mm);
- Ship Wgt. 14 (8.2kg)
Specifications
| Compliant/Standard | ASTM C702, ASTM C778, ASTM D3282, ASTM D421, ASTM C128, ASTM B215, C136, C702, C778, D421, D424, D457, D806, AASHTO T27, |
|---|---|
| Other | Pans: 8.0 x 5.25 x 4.25 in. / 133 x 203 x 108 mm |
| Other | Hopper width x length: 6.75 x 8 in. / 171 X 203 mm |
| Dimensions | Chutes: 14 x 0.375 in. / 9.52 mm) width |
| Weight | 14 lbs / 8.2 kg |
| Manufacturer | Humboldt Manufacturing |
| Model No | H-3962A |
