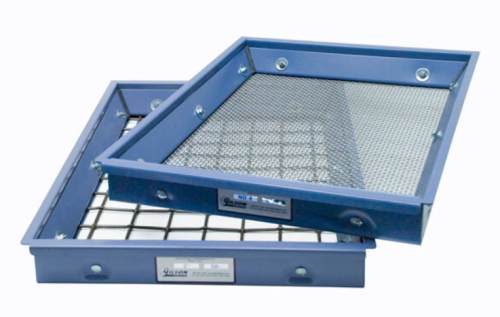

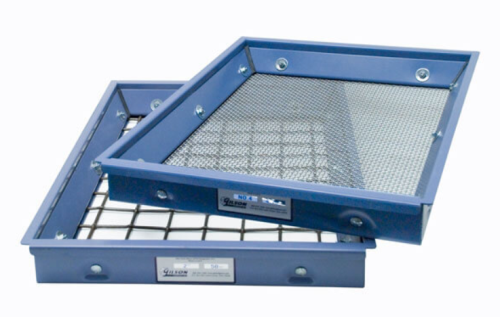

Screen Tray, Full ISO, 3.15 mm Intermediate Series, Stainless Steel Wire Cloth, for Use with Gilson TS-1 Testing Screen System, Gilson, TSA-101 3.15M
Roll over image to zoom in Click on image to zoom
Screen Tray, Full ISO, 3.15 mm Intermediate Series, Stainless Steel Wire Cloth, for Use with Gilson TS-1 Testing Screen System, Gilson, TSA-101 3.15M

Screen Tray, Full ISO, 3.15 mm Intermediate Series, Stainless Steel Wire Cloth, for Use with Gilson TS-1 Testing Screen System, Gilson, TSA-101 3.15M

Item: 91-9020-30-EA
UOM: EA (1)
Price:
$491.00

Description

Gilson® Screen Tray with Steel Wire Cloth, Full ISO 3.15 mm Screen Opening, Intermediate Series, for Gilson TS-1 Testing Screen System, TSA-101 3.15M

Features:

  • For Gilson Testing Screen and Test-Master® Testing Screens
  • Welded and bolted heavy gauge painted steel construction
  • Meets ISO 3310/565 compliance grade wire cloth

Included Items:

  • 3.15mm Testing Screen Tray
  • Serial Number
  • Compliance Grade ISO 3310/565 Wire Cloth

Specifications

Compliant/Standard ISO 565 , ISO 3310-3
Other Cloth size, W x D: 16 x 24 in / 406 x 610 mm
Other Clear screen size of tray, W x D: 14.75 x 22.75 in / 375 x 578 mm
Dimensions W x D x H: 17.75 x 26.25 x 2.625 in / 451 x 667 x 67 mm
Weight 18.0 lbs / 8.16 lb
Manufacturer Gilson Company
Model No TSA-101 3.15M
