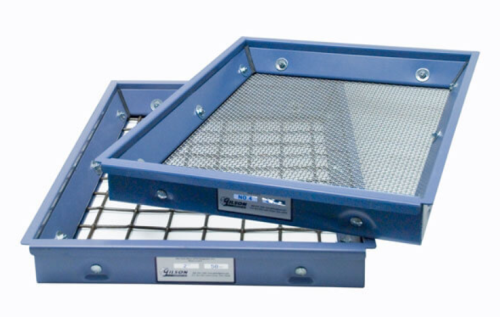

SCREEN TRAY U.S. #35 (500 Micrometers), Fine Series, Stainless Steel Wire Cloth, for Use with GILSON TS-1 TESTING SCREEN SYSTEM
Roll over image to zoom in Click on image to zoom
SCREEN TRAY U.S. #35 (500 Micrometers), Fine Series, Stainless Steel Wire Cloth, for Use with GILSON TS-1 TESTING SCREEN SYSTEM

SCREEN TRAY U.S. #35 (500 Micrometers), Fine Series, Stainless Steel Wire Cloth, for Use with GILSON TS-1 TESTING SCREEN SYSTEM

Item: 91-9030-47-EA
UOM: EA (1)
Price:
$328.80

Description

No. 35 (500µm) full ASTM Testing Screen Trays feature welded and bolted heavy gauge painted steel construction and are fitted with ASTM E11 Compliance Grade wire cloth.

Features:

  • Meets ASTM E11 wire cloth specifications
  • Rugged steel Screen Trays are designed for use in Gilson Testing Screen and Test-Master® models

Included Items:

  • No. 35 (500µm) Testing Screen Tray
  • Serial Number
  • Compliance Grade ASTM E11 Wire Cloth



Specifications

Compliant/Standard ASTM E11
Other Cloth size, W x D: 16 x 24 in / 406 x 610 mm
Other Clear screen size of tray, W x D: 14.75 x 22.75 in / 375 x 578 mm
Dimensions W x D x H: 17.75 x 26.25 x 2.625 in / 451 x 667 x 67 mm
Weight 18.0 lbs / 8.16 kg
Manufacturer Gilson Company
Model No TSA-102 #35
