Description

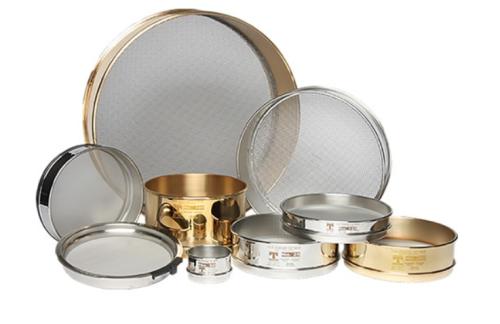

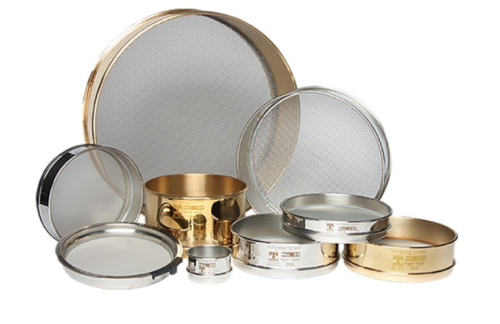

8" Diameter Test Sieve
Brass Frame with Stainless Cloth
Overall Height – Full: 2-5/8"
Depth to Cloth – Full: 2"
Click on catalog number to go to item page.
| Catalog Number | U.S.A. | Metric |
| 91-9139-01 | No. 3-1/2 | 5.6mm |
| 91-9139-02 | No. 4 | 4.75mm |
| 91-9139-03 | No. 5 | 4.0mm |
| 91-9139-04 | No. 6 | 3.35mm |
| 91-9139-05 | No. 7 | 2.8mm |
| 91-9139-06 | No. 8 | 2.36mm |
| 91-9139-07 | No. 10 | 2.0mm |
| 91-9139-08 | No. 12 | 1.7mm |
| 91-9139-09 | No. 14 | 1.4mm |
| 91-9139-10 | No. 16 | 1.18mm |
| 91-9139-11 | No. 18 | 1.0mm |
| 91-9139-12 | No. 20 | 850 micron |
| 91-9139-13 | No. 25 | 710 micron |
| 91-9139-14 | No. 30 | 600 micron |
| 91-9139-15 | No. 35 | 500 micron |
| 91-9139-16 | No. 40 | 425 micron |
| 91-9139-17 | No. 45 | 355 micron |
| 91-9139-18 | No. 50 | 300 micron |
| 91-9139-19 | No. 60 | 250 micron |
| 91-9139-20 | No. 70 | 212 micron |
| 91-9139-21 | No. 80 | 180 micron |
| 91-9139-22 | No. 100 | 150 micron |
| 91-9139-23 | No. 120 | 125 micron |
| 91-9139-24 | No. 140 | 106 micron |
| 91-9139-25 | No. 170 | 90 micron |
| 91-9139-26 | No. 200 | 75 micron |
| 91-9139-27 | No. 230 | 63 micron |
| 91-9139-28 | No. 270 | 53 micron |
| 91-9139-29 | No. 325 | 45 micron |
| 91-9139-30 | No. 400 | 38 micron |
| 91-9139-31 | No. 450 | 32 micron |
| 91-9139-32 | No. 500 | 25 micron |
| 91-9139-33 | No. 635 | 20 micron |
| 91-9139-34 | 1/8" | 3.15mm |
For Half Height, 8" Series, see Catalog Number 91-9139H
Specifications
| Material | Brass frame and stainless steel wire mesh |
|---|---|
| Dimensions | 8 in diameter x 1/8 in. (3.15 mm) height |
| Manufacturer | W S Tyler |
| Model No | 3281 |
