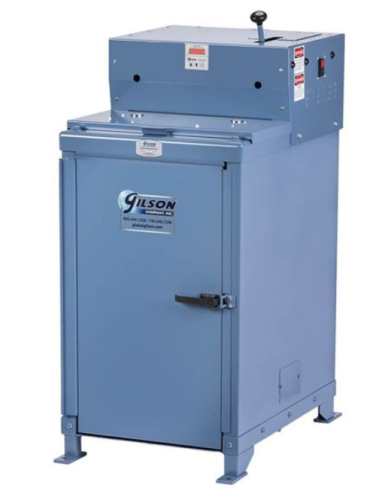

Silent Testing Screen, Hydraulic Clamping, 7-Tray Capacity, 230 V, 50 Hz, Gilson, TS-4F
Roll over image to zoom in Click on image to zoom
Silent Testing Screen, Hydraulic Clamping, 7-Tray Capacity, 230 V, 50 Hz, Gilson, TS-4F

Silent Testing Screen, Hydraulic Clamping, 7-Tray Capacity, 230 V, 50 Hz, Gilson, TS-4F

Item: 91-9006-02-EA
UOM: EA (1)
Price:
$13,976.90

Description

Gilson® Silent Testing Screen, Hydraulic Clamping, 7-Tray Capacity, 230 V, 50 Hz, TS-4F

Features:

  • Newest model combines all features of TS-3 with addition of sound-damping structure and integrated digital LED timer
  • door is fitted with adjustable, heavy-duty, over-center lever latch that pulls door tightly against frame
  • Lid incorporates strong ferrite magnets that secure it in open position to aid in loading process and in closed position to ensure seal integrity while in operation
  • Wear-resistant seals on door and lid further prevent airborne dust and fine particles from entering lab environment during testing procedure
  • Door, lid, and interior surfaces of the TS-4 are lined with sound-damping material that significantly reduces operational noise
  • Rapid particle size determinations for materials from 4 in (101 mm) to No. 4 (4.75 mm)
  • Drive mechanism is completely enclosed for added safety, and powerful 1/2 hp capacitor-type motor is operated with  starting switch with built-in overload protection
  • Processes large samples up to 1 ft3 (0.028 m3)
  • Ideal for particle size determinations on large samples of aggregate, slag, ores, and other coarse materials
  • Batch sizes up to one cubic foot (0.028 m3) or more can be processed into seven fractions in as little as six to ten minutes, depending on material type

Specifications:

Particle Size Range 4 in. –No. 4 (101–4.75 mm)
Screen Tray Capacity TS-3 & TS-4 Models:  6 tray slots plus 1 for pan
Maximum Sample Volume 1 ft3  / 28.3 L
Motion/Agitation Vertical Vibration
Mounting Capability Yes, must be bolted to floor
Electrical F Models:  230 V / 50 Hz, 4.7 amps
Product Dimensions TS-4: 22.25 x 31 x 47.5 in. / 565 x 787.4 x 1206.5 mm, W x D x H
Estimated Shipping Weight TS-4F: 520.0 lb / 235.87 kg

Specifications

Capacity 28.3 L / 1 cu. ft.
Power 230 V / 50 Hz, 4.7 amps
Dimensions W x D x H: 22.25 x 31 x 47.5 in. / 565 x 787.4 x 1206.5 mm
Weight Shipping: 520. 0 lbs / 235.87 kg
Manufacturer Gilson Company
Model No TS-4F
