Description

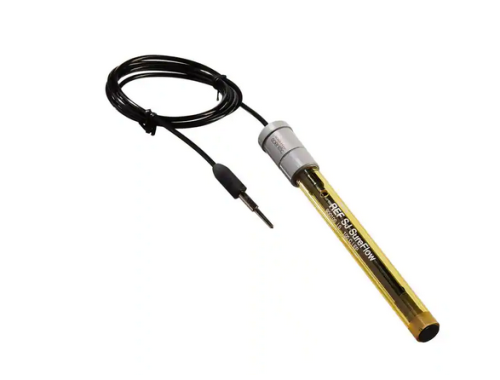

Thermo Scientific™ Orion™ Single Junction Reference Half-Cell Electrode, with Epoxy Body, 900100
Features:
- Precisely measure with ion-selective electrodes using Sure-Flow™ Reference Half-Cell electrode, a sleeve-type Ag/AgCl reference electrode
- Recommended for all pH and ion-selective measurements except for those:
- In dilute solutions where ion to be measured is contained in filling solution of the Orion™ 900100
- In solutions where an ion in filling solution would introduce an electrode interference
- In solutions where a species is present which forms a precipitate with an ion contained in filling solution of the Orion™ 900100
- For these samples, double junction reference electrode, 91-2669-01 (Orion™ 900200), with an appropriate intermediate filling solution, is recommended
- When filled with 91-2668-01 (Orion™ 900001) Filling Solution, Orion™ 900100 matches the potential characteristics of a conventional KCl saturated calomel electrode
Applications:
- Many ISE determinations
Specifications:
| Description | 900100 Sure-Flow™ Reference Half Cell Electrode |
| Junction | Sure-Flow™ Sleeve Junction |
| Type | Reference Half-Cell Electrode |
| Electrode | Single Junction Reference Electrode |
| Filling Solution Type | 91-2668-01 (Orion™ 900001) Filling Solution |
| For Use With (Application) | ISE determinations |
| Internal Reference | Ag/AgCl |
| Reference Electrolyte | Equitransferent solution with Ag/AgCI |
Specifications
| Range | pH: 0 to 14 |
|---|---|
| Range | Temperature: 0 Degrees C to 100 Degrees C |
| Dimensions | 110 mm length x 12 mm body diameter |
| Manufacturer | Thermo Scientific Orion |
| Model No | 900100 |
